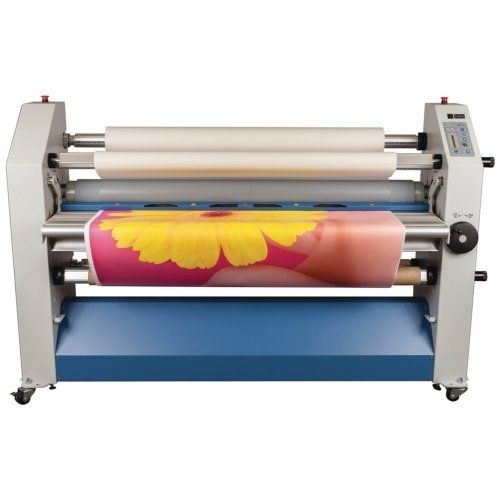

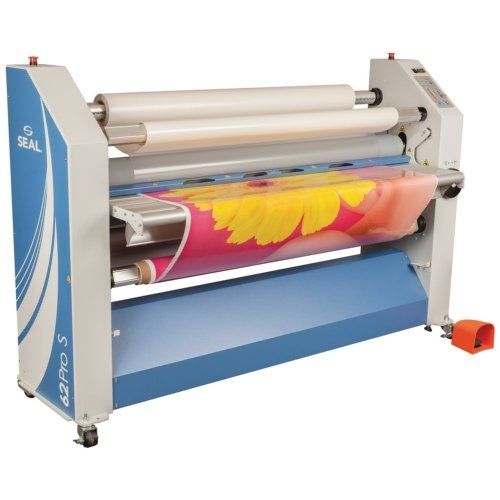

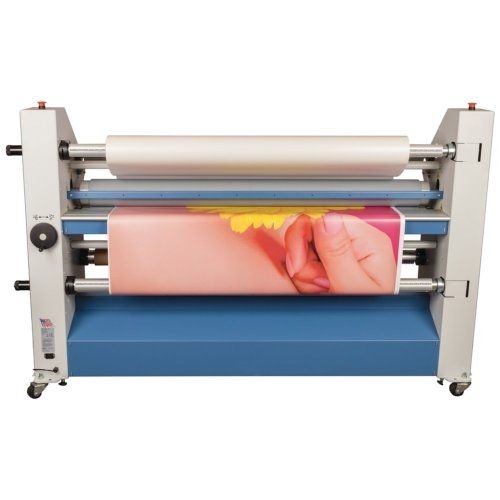

SEAL 62 Pro S 61" Wide Format Heat Assist Roll Laminator
Key Features
- Heat assisted top roller for superb lamination performance.
- Laminates graphics up to 61" wide.
- Capable of laminating at speeds up to 20 feet/minute.
- Fully adjustable top roller temperature, speed and pressure settings
Product Description
The SEAL 62 Pro S 61" Wide Format Heat Assist Roll Laminator features the same advanced lamination technologies of the 62 Pro D, but without the bottom heater or flip up pull roller. Positioned for value, the Pro S offers four un-wind/take up shafts, swing out supply shafts and a slightly shorter cabinet design. The 62 Pro S is ideal for all single side heat applications as well as cold applications using materials up to 61" wide & 1.5" thick. The 62 Pro S now comes standard with a print roll trough mounted to the front table, an additional bracket to hold a spare auto-grip shaft, and a rear nip adjustment handle.
Product Details
- Heat assisted top roller for superb lamination performance.
- Laminates graphics up to 61" wide.
- Capable of laminating at speeds up to 20 feet/minute.
- 1 1/2" manual nip adjustment allows for precise operation and accommodates most substrates.
- Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps.
- 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination.
- Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces.
- Auto-grip upper take-up shaft for winding release liners.
- Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap.
- Comprehensive safety system with emergency stops and self-checking safety eyes.
- Foot switch for hands free operation.
- Ergonomic touch pad control panel.
- Included roll trough to keep rolled prints in place before and during lamination.
- Optional easy-in feed table.
Item Specifications
- Depth: 17.7" (450 mm)
- Electrical Requirements: 1N/PE 230VAC +/-10%, 50/60 Hz, 16A
- Heated Rollers: Single
- Maximum Roller Temperature: 284F (140C)
- Maximum Speed: 20 ft/min (6m/min)
- Maximum Substrate Thickness: 1 1/2" (38mm)
- Maximum Working Width: 61" (1550 mm)
- Net Weight: 850 lbs (386 kg)
- Dimensions: 87.4" x 48.6" x 17.7" (2220 x 1234 x 450mm)
