SEAL 62 Pro D 61" Wide Format Roll Laminator
Key Features
- Laminates graphics up to 61" wide.
- Capable of laminating at speeds up to 20 feet/minute.
- Ideal for all hot/cold applications
- Dual heated rollers make most applications, including encapsulation, easy
Product Description
The SEAL 62 Pro D Wide Format Roll Laminator is capable of mounting, laminating and encapsulating prints up to 61" wide at a speed of 20 feet per minute. Positioned for production, the 62 Pro D offers dual heated rollers, five un-wind/take up shafts and a revolutionary film saving flip up pull roll system. It is ideal for all hot/cold applications using materials up to 61" wide and 1.5" thick, including high speed, single pass encapsulation up to 10 mil over 10 mil. The 62 Pro D comes standard with a print roll trough mounted to the front table, an additional bracket to hold a spare auto-grip shaft and a rear nip adjustment handle. With fully adjustable temperature, speed and pressure settings the 62 Pro D is ideal for the more experienced finisher requiring a highly versatile laminator.
Product Details
- Dual heated rollers make most applications, including encapsulation, easy while superior roller technology delivers better processing of soft substrates.
- Laminates graphics up to 61" wide.
- Capable of laminating at speeds up to 20 feet/minute.
- 1 1/2" manual nip adjustment allows for precise operation and accomodates most substrates.
- Roll-to-roll operation (from bottom unwind) to accommodate applications including vehicle wraps.
- 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination.

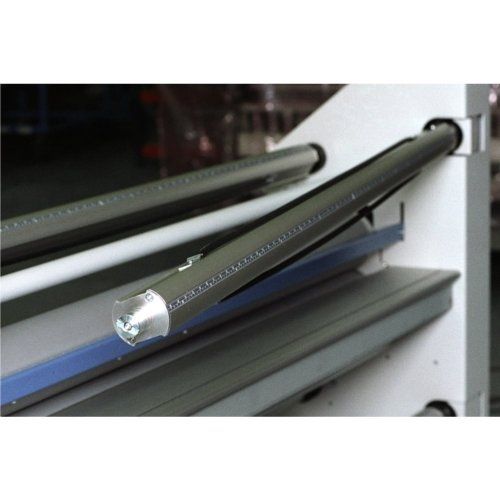

- Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces.
- Auto-grip upper take-up shaft for winding release liners.
- Exclusive ‘stay-put’ swing up feed table keeps table up, making media handling and set-up a snap and flip up pull rollers for no hassle loading.
- Comprehensive safety system with emergency stops and self-checking safety eyes.
- Foot switch for hands free operation.
- Ergonomic touch pad control panel.
- Image guide to ensure perfect alignment and roll trough to keep rolled prints in place before and during lamination both standard.
- Optional easy-in feed table and slitter to make laminating a snap while the optional fan banks cools the machine down when both rolls are heated.
Item Specifications
- Depth: 17.7" (450 mm)
- Electrical Requirements: 1N/PE 230VAC +/-10%, 50/60 Hz, 35A
- Heated Rollers: Dual
- Maximum Roller Temperature: 284F (140C)
- Maximum Speed: 20 ft/min (6m/min)
- Maximum Substrate Thickness: 1 1/2" (38mm)
- Maximum Working Width: 61" (1550 mm)
- Net Weight: 994 lbs ( 450 kg)
- Dimensions: 87.4" x 56.3" x 17.7" (2220 x 1430 x 450mm)
