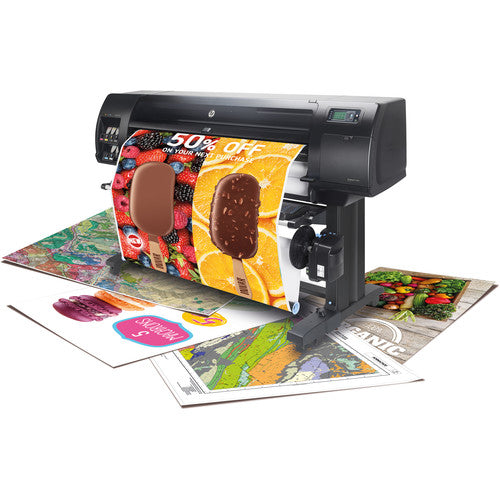

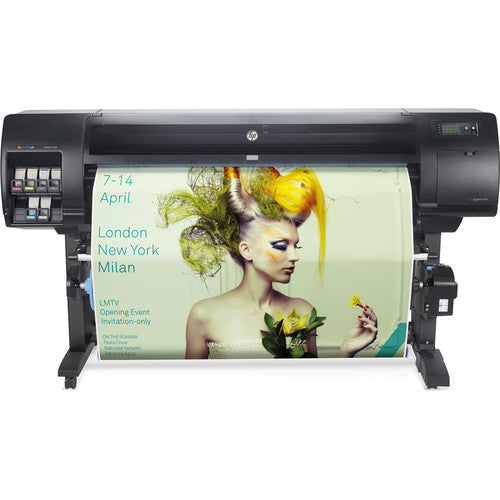

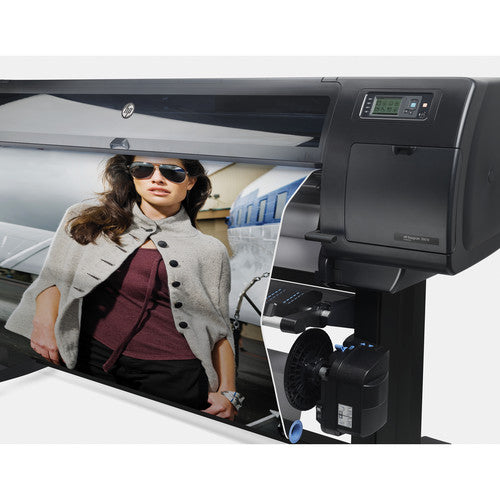

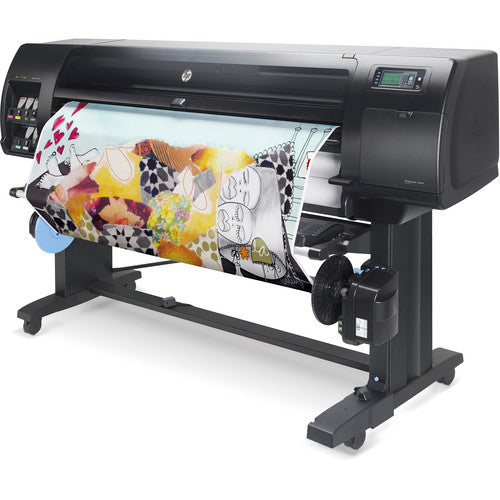

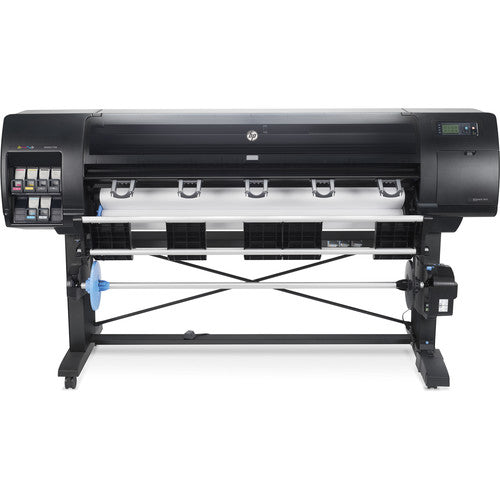

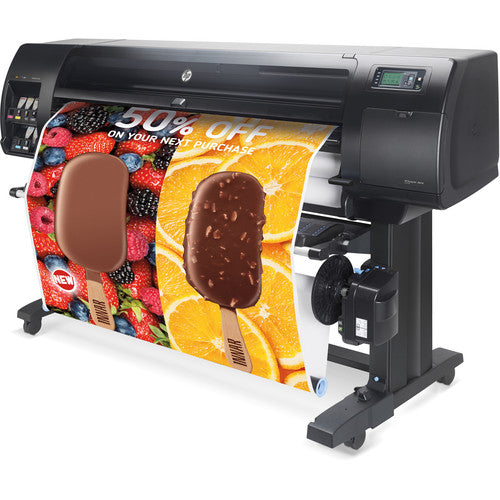

Work at fast production speeds while producing professional-quality prints, line drawings, and posters with the DesignJet Z6610 60" Production Printer from HP. Featuring an impressive 2400 x 1200 dpi print resolution and fast print speeds of 3.2 ppm for A1-size media, the Z6610 supports long-roll media and utilizes a horizontal trimmer and built-in take-up reel for working with media up to 60" wide. Engineered with optimized printheads utilizing HP Vivid Photo Inks, these pigment-based inks achieve high impact and clear readability, while also offering a high level of water and fade resistance. HP SmartStream job preparation and processing software improves operator efficiency, and you can also enjoy one-click printing with HP Click printing software. Additionally, the unit's 500GB hard disk allows you to manage multiple jobs at a time and enables you to integrate the Z6610 with market-leading software. The unit comes with raster drivers for Windows and macOS, and security features include SNMPv3, control panel lock levels, certificates management, IPsec, SSL, secure file erase, and secure disk erase.
- Optimized printheads and HP Vivid Photo Inks for high-impact prints, posters, and line drawings
- Professional-quality output with water and fade-resistant inks
- 2400 x 1200 dpi print resolution and fast print speeds of 3.2 ppm for A1-size media

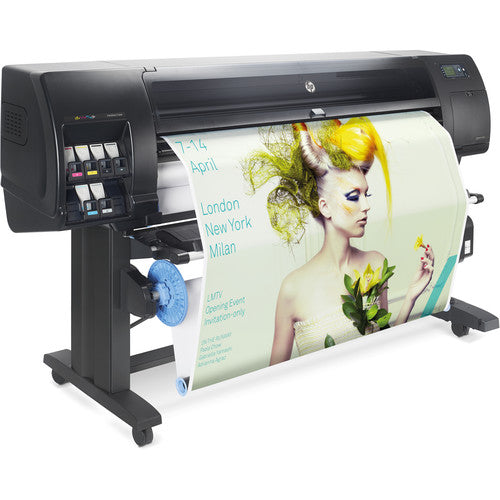

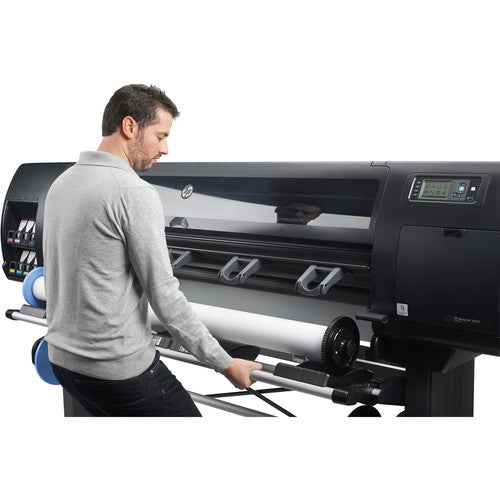

- Supports roll media up to 60" wide and includes horizontal trimmer with built-in take-up reel
- One-click printing with HP Click printing software
- 500GB hard disk capacity for managing multiple jobs at a time
- Contains raster drivers for Windows and macOS
- Security features include SNMPv3, control panel lock levels, certificates management, IPsec, SSL, secure file erase, and secure disk erase
- Ethernet connectivity and EIO Jetdirect accessory slot
- ENERGY STAR qualified and EPEAT Bronze
HP Z6610 Specs
Functions |
Printing Technology | Inkjet |
Color Type | Color |

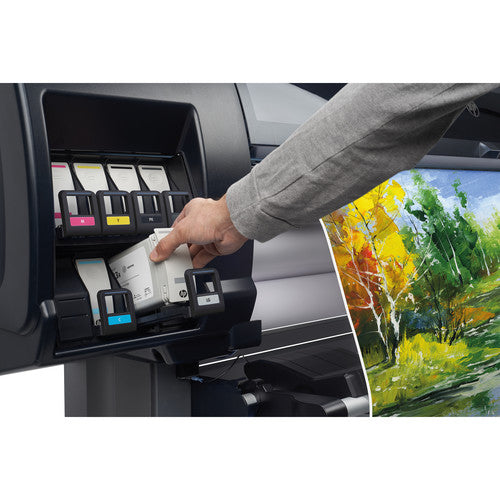

Configuration | 6 x Individual Cartridge |

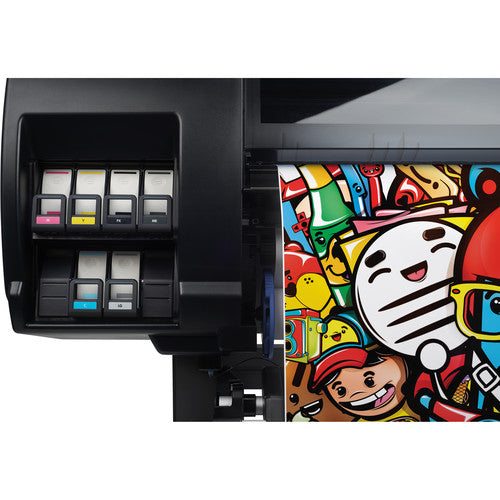

Ink Type | Pigment-Based (Cyan, Light Gray, Magenta, Matte Black, Photo Black, Yellow) |
Ink Color | 1 x Cyan 1 x Magenta 1 x Yellow 1 x Light Gray 1 x Matte Black 1 x Photo Black |
Compatible Ink Cartridges | HP 771, HP 773 |
Print Resolution | 2400 x 1200 dpi |
Printer Language | CALS G4, HP-GL/2, HP-RTL |
Print Speed (By Time) | 1500 ft² / 140 m² per Hour (Max Speed) 283 ft² / 26.3 m² per Hour (Normal) 141 ft² / 13.1 m² per Hour (Best Quality) |
Paper Handling | Roll Feed |
Media Sizes | Roll Width: 11 to 60" / 27.9 to 152.4 cm Roll Length: 50 to 100' / 15.2 to 30.5 m |
Media Thickness | 22 mil / 0.6 mm |
Margins | Roll 0.2" / 5.1 mm (Leading, Sides, Trailing) |
Interface | RJ45 |
Hard Drive | 500 GB |
Internal Memory | 64 GB |
Operating System Support | Windows, macOS/OS X |
Operating Temperature | 41 to 104°F / 5 to 40°C (Recommended) |
Operating Humidity | 20 to 80% |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Consumption | 270 W (Maximum) 48 W (Ready) 5.3 W (Sleep) 0.3 W (Off) |
Max Acoustic Noise | 53 dBA (Pressure) 7 BA (Power) |
Dimensions (W x H x D) | 95.7 x 53.9 x 27.2" / 243.1 x 136.9 x 69.1 cm (Fully Assembled) |
Weight | 419 lb / 190.1 kg |
Warranty Length | Limited 1-Year Warranty |
