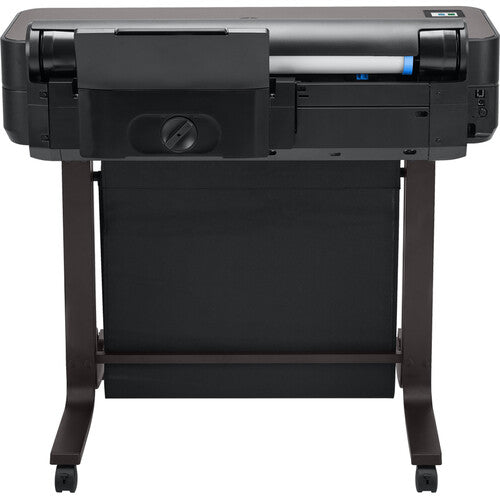

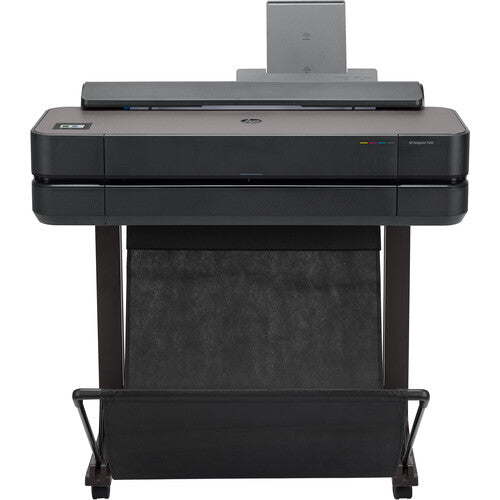

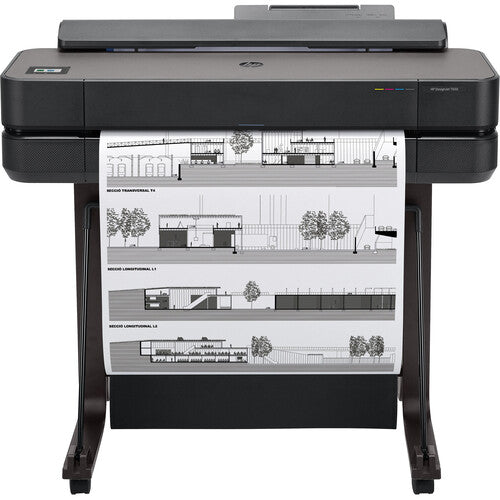

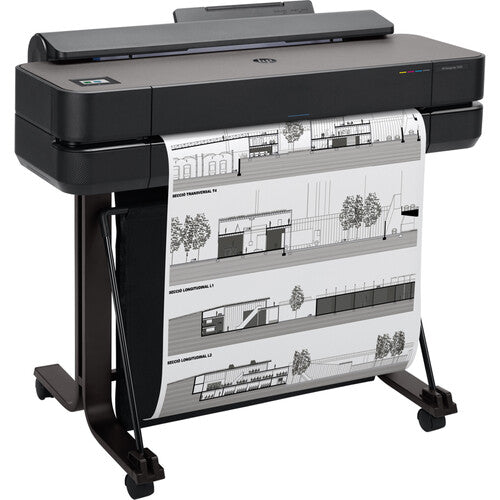

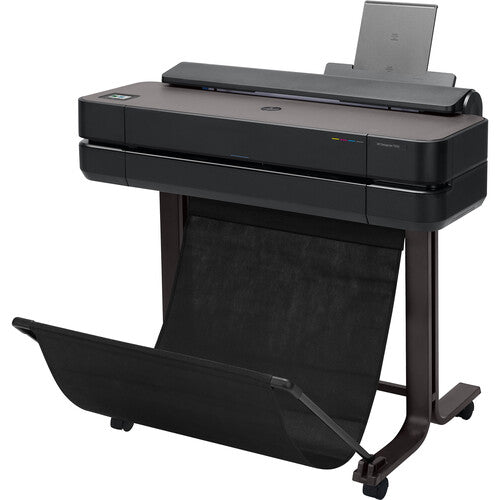

The DesignJet T650 24" Large Format Plotter Printer from HP is suitable for AEC, GIS, and MCAD professionals who need to print maps, technical drawings, posters, and renderings with precise, accurate line quality and crisp text. Print resolution is an impressive 2400 x 1200 dpi, and this powerful unit accepts roll and sheet media up to 24" wide. Designed for speed and efficiency, you can send multiple files in one click with HP Click software, and 22 x 34" media can be printed in 26 seconds. Additionally, with the HP Smart app, you can wirelessly manage and print your jobs from a smartphone or tablet.
- Designed for AEC, GIS, and MCAD professionals
- Prints maps, technical drawings, and posters
- Suitable for line drawings, presentations, and renderings
- Manages multiple files in one click with HP Click software
- Mobile printing via HP Smart app
- Compatible with roll and sheet media
- Prints 22 x 34" media in 26 seconds
- Large media bin for collecting print jobs
HP T650 Specs
Functions |
Printer
Printing Technology | Thermal Inkjet |
Color Type | Color |
Configuration | 4 x Individual Cartridge |
Ink Type | Dye-Based (Cyan, Magenta, Yellow) Pigment-Based (Black) |
Ink Color | 1 x Black 1 x Cyan 1 x Magenta 1 x Yellow |
Compatible Ink Cartridges | HP 712 |
Print Resolution | 2400 x 1200 dpi |
Borderless Printing | No |
Printer Language | CALS G4, HP-GL/2, HP-RTL, JPEG, URF |
Minimum Line Width | 0.79 mil / 0.02 mm |
Line Accuracy | ±0.1% |
Minimum Ink Droplet Size | 5.5 pL (Cyan, Magenta, Yellow) 12 pL (Black) |
Print Speed (By Size) | 22 x 34" / 558.8 x 863.6 mm: 26 Seconds |
Printer Media Handling
Paper Handling | Manual Feed, Media Cutter, Roll Feed |
Media Sizes | Sheet Width: 8.3 to 24" / 21.1 to 61 cm Roll Width: 11 to 24" / 27.9 to 61 cm Sheet Length: 11 to 74.7" / 27.9 to 189.7 cm |
Media Thickness | 11.8 mil / 0.3 mm |
Margins | Sheet/Roll 0.2" / 5.1 mm (Leading, Sides, Trailing) |
Connectivity
Interface | USB 2.0, RJ45 |
Wireless | Wi-Fi |
Direct Printing | HP Smart |
Internal Memory | 1 GB |
Operating System Support | Windows, macOS/OS X |
Environmental
Operating Temperature | 41 to 104°F / 5 to 40°C |
Operating Humidity | 20 to 80% |
Storage Temperature | -13 to 131°F / -25 to 55°C |
General
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Consumption | 35 W (Maximum) 5.6 W (Ready) 2.1 W (Sleep) 0.2 W (Standby) |
Max Acoustic Noise | 42 dBA (Pressure) 5.8 BA (Power) |
Dimensions (W x H x D) | 39.9 x 36.7 x 23.8' / 1216.2 x 1118.6 x 725.4 cm (with Stand) |
Weight | 65 lb / 29.5 kg |
Packaging Info
Package Weight | 82 lb |
Box Dimensions (LxWxH) | 45.38 x 22.75 x 18.5" |
In the Box
- HP DesignJet T650 24" Large Format Plotter Printer
- Starter Cyan Ink Cartridge
- Starter Magenta Ink Cartridge
- Starter Yellow Ink Cartridge
- Starter Black Ink Cartridge
- Printer Stand
- Automatic Sheet Feeder
- Roll Cover
- Power Cord
- Limited 1-Year Warranty
- HP 24" Spindle for Select DesignJet Printers
