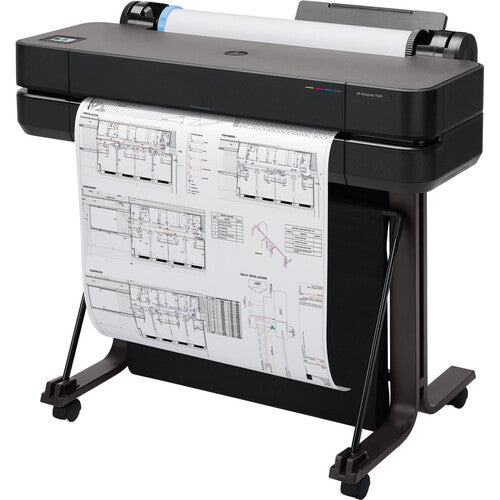

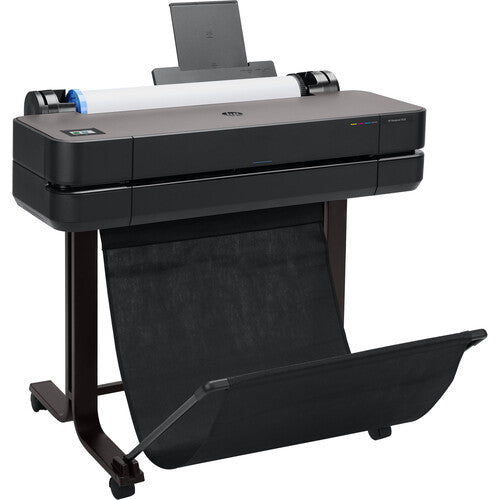

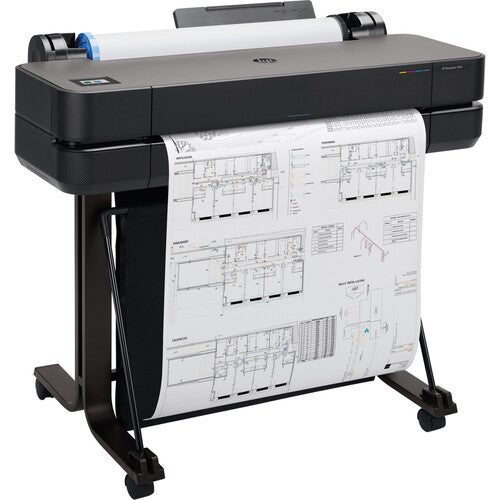

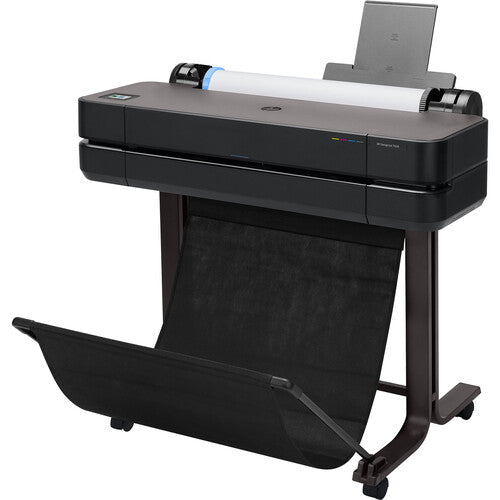

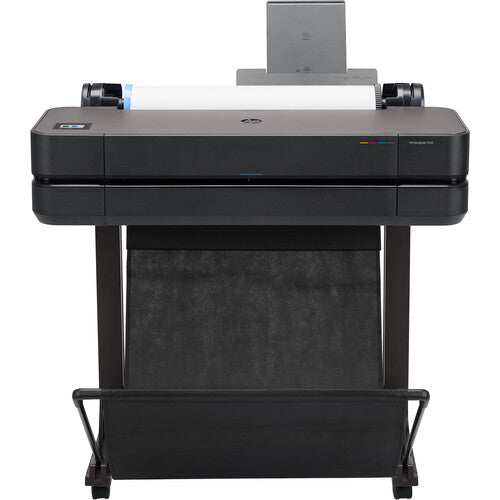

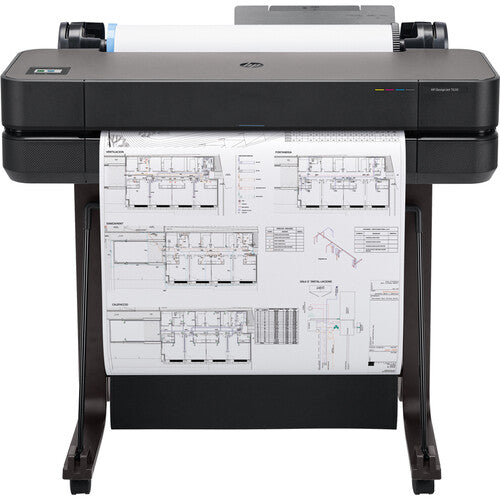

HP DesignJet T630 24" Large Format Plotter Printer


Availability:

SKU:

Barcode:

Collections: Printers

Product type: Inkjet Printer

Vendor: HP

$1,399.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Tab title Delivery
Key Features
  • Thermal Inkjet Printing
  • For AEC, GIS & MCAD Professionals
  • Print Resolution: 2400 x 1200 dpi
  • 22 x 34" Print Speed: 30 Seconds
  • Wireless and 1-Click Printing
  • Raster Driver for Windows and macOS
  • Automatic Horizontal Cutter
  • ENERGY STAR Certified
  • USB, Ethernet & Wi-Fi

The DesignJet T630 24" Large Format Plotter Printer from HP is suitable for AEC, GIS, and MCAD professionals who need to print maps, technical drawings, posters, and renderings with precise, accurate line quality and crisp text. Print resolution is an impressive 2400 x 1200 dpi, and this powerful unit accepts roll and sheet media up to 24" wide. Designed for speed and efficiency, you can send multiple files in one click with HP Click software, and 22 x 34" media can be printed in 30 seconds. Additionally, with the HP Smart app, you can wirelessly manage and print your jobs from a smartphone or tablet.

  • Designed for AEC, GIS, and MCAD professionals
  • Prints maps, technical drawings, and posters
  • Suitable for line drawings, presentations, and renderings
  • Manages multiple files in one click with HP Click software
  • Mobile printing via HP Smart app
  • Compatible with roll and sheet media
  • Prints 22 x 34" media in 30 seconds
  • Large media bin for collecting print jobs



HP Data Sheet

HP T630 Specs

Functions Print
Printer
Printing Technology Thermal Inkjet
Color Type Color
Configuration 4 x Individual Cartridge
Ink Type Dye-Based (Cyan, Magenta, Yellow)
Pigment-Based (Black)
Ink Color 1 x Black
1 x Cyan
1 x Magenta
1 x Yellow
Compatible Ink Cartridges HP 712
Print Resolution 2400 x 1200 dpi
Borderless Printing No
Printer Language CALS G4, HP-GL/2, HP-RTL, JPEG, URF
Minimum Line Width 0.79 mil / 0.02 mm
Line Accuracy ±0.1%
Minimum Ink Droplet Size 5.5 pL (Cyan, Magenta, Yellow)
12 pL (Black)
Print Speed (By Size) 22 x 34" / 558.8 x 863.6 mm: 30 Seconds
Printer Media Handling
Paper Handling Manual Feed, Media Cutter, Roll Feed
Media Sizes Sheet Width: 8.3 to 24" / 21.1 to 61 cm
Roll Width: 11 to 24" / 27.9 to 61 cm
Sheet Length: 11 to 74.7" / 27.9 to 189.7 cm
Media Thickness 11.8 mil / 0.3 mm
Margins Sheet/Roll
0.2" / 5.1 mm (Leading, Sides, Trailing)
Connectivity
Interface USB 2.0, RJ45
Wireless Wi-Fi
Direct Printing HP Smart
Internal Memory 1 GB
Operating System Support Windows, macOS/OS X
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Operating Humidity 20 to 80%
Storage Temperature -13 to 131°F / -25 to 55°C
General
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 35 W (Maximum)
5.6 W (Ready)
2.1 W (Sleep)
0.2 W (Standby)
Max Acoustic Noise 42 dBA (Pressure)
5.8 BA (Power)
Dimensions (W x H x D) 39.9 x 36.7 x 23.8' / 1216.2 x 1118.6 x 725.4 cm (with Stand)
Weight 63.7 lb / 28.9 kg
Packaging Info
Package Weight 79 lb
Box Dimensions (LxWxH) 44.45 x 22.5 x 18.25"

Sustainability Impact

More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

In the Box

  • HP DesignJet T630 24" Large Format Plotter Printer
  • Starter Cyan Ink Cartridge
  • Starter Magenta Ink Cartridge
  • Starter Yellow Ink Cartridge
  • Starter Black Ink Cartridge
  • Printer Stand
  • Automatic Sheet Feeder
  • Power Cord
  • Limited 1-Year Warranty
  • HP 713 DesignJet Printhead Kit
