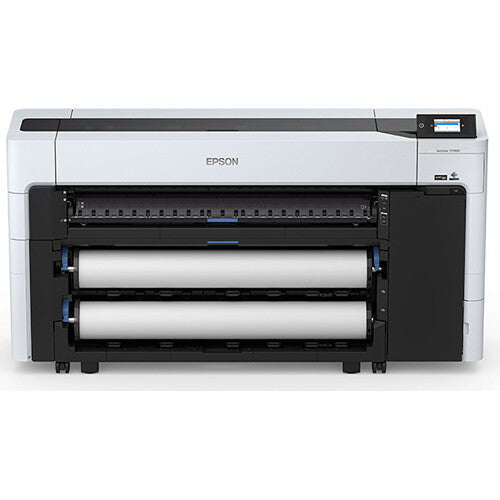

Epson SureColor T7770D 44" Large-Format Dual-Roll CAD/Technical Printer


Availability:

SKU:

Barcode:

Collections: Epson Large Format Printers, Epson Printers Promotion, Printers

Product type: Inkjet Printer

Vendor: Epson

$5,820.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Tab title Delivery

Epson T7770DR Overview

The Epson SureColor T7770D is a highly user-oriented large-format printer ideal for high-production printing of blueprints, line drawings, and posters. The SureColor T7770D uses industry-leading 2.6" PrecisionCore printhead technology, which delivers very fast print speeds. The T7770D prints posters and point-of-purchase (POP) displays at speeds over 300 square feet per hour, and CAD and technical drawings at production-class speeds of over 1,400 square feet per hour.

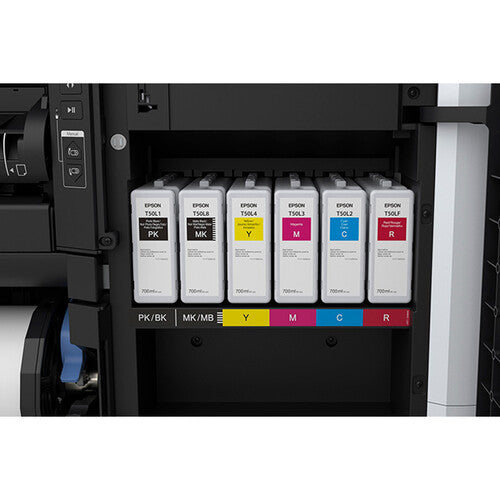

The advanced printer uses the Epson 6-color UltraChrome XD3 ink, which includes a red cartridge. The integrated Adobe Embedded Print Engine with four on-board Intel Atom CPUs quickly processes complicated PDF data and accurately reproduces transparent design layers at speeds up to three times faster than previous generations. With a purpose-built, reliable design with complete front operation, the SureColor T7770D seamlessly produces crisp, detailed prints even when pushed against the wall. The printer features automatic roll loading and a dual roll/take-up system, allowing you to efficiently integrate it into most production workflows.

Key Features

  • BorderFree print widths from 10 to 44"
  • 2.6" PrecisionCore printhead technology
  • Flattop design with complete front operation
  • Print on a wide range of media, including glossy, technical, bond, matte, and specialty medias, and rigid poster boards up to 1.5mm thick

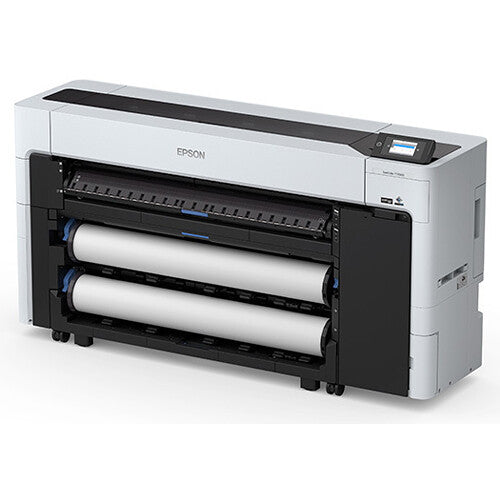

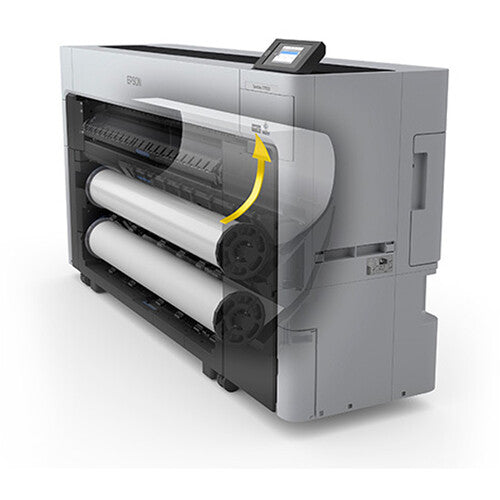

  • Switch between two media types or sizes, or use a second roll as a take-up reel for roll-to-roll production

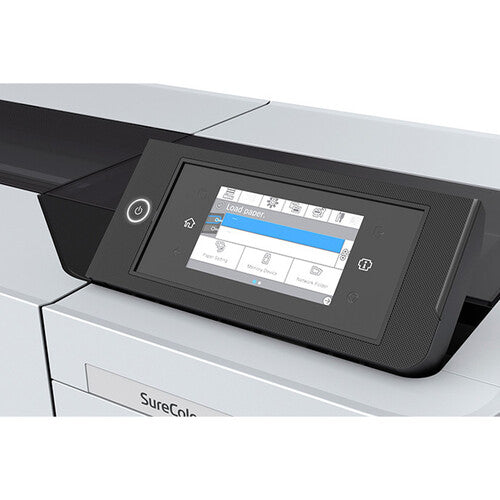

  • Configurable 4.3" touchscreen control panel for simple operation, automated routine maintenance, and convenient user self-service for long-term operation
  • Interfaces: SuperSpeed USB 3.2, Gigabit Ethernet, or Wi-Fi (2.4 and 5 GHz) to fit virtually any workflow

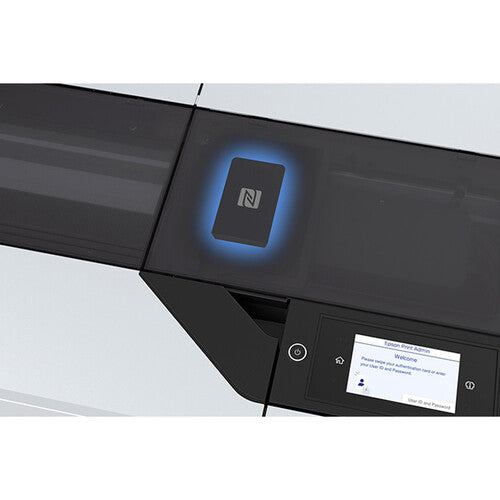

  • Over 28 IT security features for office or remote office locations, including an IC card option for user control and tracking, SSD encryption, and IEEE 802.1x
  • Included Epson software suite and Cloud Solution PORT system let you remotely manage and monitor your printer or fleet of printers from the convenience of your laptop or smart device
  • RoHS compliant
  • Two roll media adapters installed

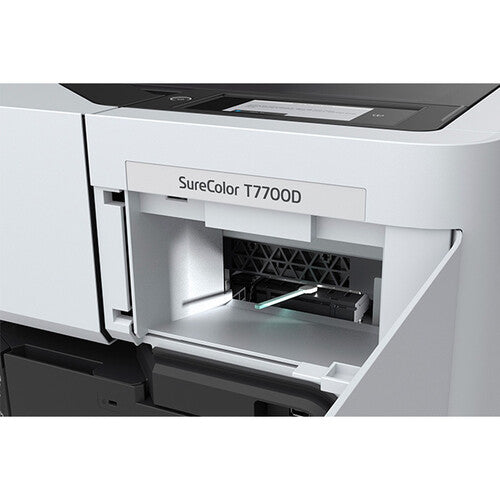

  • Maintenance box preinstalled

Epson T7770DR Specs

Functions Print
Printer
Printing Technology Inkjet
Color Type Color
Configuration 6 x Individual Cartridge
Ink Type Pigment-Based
Ink Color 1 x Cyan
1 x Magenta
1 x Yellow
1 x Red
1 x Matte Black
1 x Photo Black
Number of Nozzles 1600 Nozzles (Per Channel)
9600 Nozzles (Total)
Print Resolution 2400 x 1200 dpi
Borderless Printing Yes
Duplex Printing No
Printer Language Adobe PDF 1.7, Adobe PostScript 3, ESC/P-R, HP-GL/2, HP-RTL
Printer Media Handling
Paper Handling Roll Feed, Take-Up Reel
Media Weight Roll Feed: 27 lb
Media Thickness Roll: 2.76 to 31.5 mil / 0.07 to 0.8 mm
Sheet: 59.1 mil / 1.5 mm
Media Roll Diameter 6.69" / 17 cm (Outer)
Margins Roll
0.1" / 3 mm (Sides)
Connectivity
Interface Printer: USB Type-A, RJ45
Wireless Wi-Fi
Operating System Support Windows, Windows Server, macOS/OS X
Environmental
Operating Temperature 50 to 95°F / 10 to 35°C
Operating Humidity 20 to 80%
Storage Temperature -4 to 104°F / -20 to 40°C
Storage Humidity 5 to 85%
General
Display Size 4.3"
Display Type Touchscreen LCD
Power Source AC Adapter
Battery None
AC Input Power 110 to 240 VAC, 50 / 60 Hz
Power Consumption Printer
70 W (Maximum)
Max Acoustic Noise 49.6 dBA
Dimensions (W x H x D) 73 x 39 x 20" / 185.4 x 99.1 x 50.8 cm
