Epson SureColor T5770DR 36" Large-Format Dual-Roll CAD/Technical Printer


Availability:

SKU:

Barcode:

Collections: Epson Large Format Printers, Epson Printers Promotion, Printers

Product type: Printer

Vendor: Epson

$5,245.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Tab title Delivery

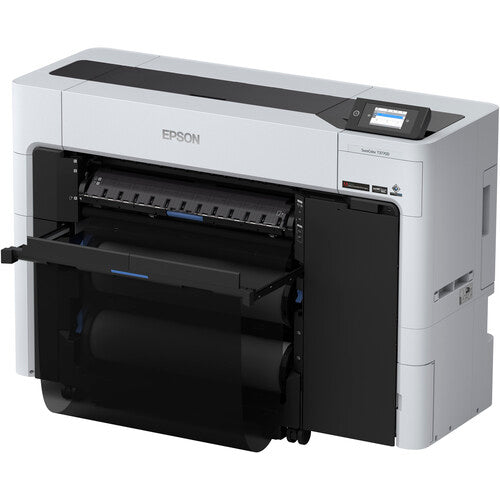

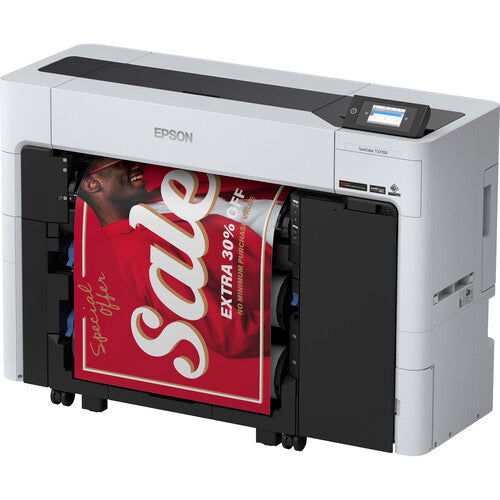

The Epson SureColor T5770DR boasts an innovative design that focuses on versatility and efficiency as much as performance. With a compact footprint and all-front operation, this advanced 36" large format dual-roll printer fits in tight spaces and can be used in virtually all environments. The T5770DR produces technical drawings at production-class speeds, as fast as 16 seconds for A1/D size prints.

Using six inks, including red, photo black, and matte black, this SureColor model delivers prints in a wide color gamut. Simple operation and flexible media handling allow users to do more while using up less space. Print on a variety of media, including glossy, technical, bond, matte, and specialty paper, and rigid poster board media up to 1.5mm thick. Versatile connectivity interfaces include high-speed USB 3.0, Gigabit Ethernet, and 2.4/5 GHz Wi-Fi. Additionally, a USB-A port allows direct printing from memory sticks.

Key Features
  • Compact Design & Production-Class Speeds
  • 16-Second A1/D Size Print Speed
  • Six-Cartridge Ink Set, Including Red
  • Two Input Rolls + Take-Up Reel
  • Input Roll 1 Can Be Used As Take-Up Reel
  • Front/Rear Loading Single Sheet Handling
  • Supports 10-36" Roll Widths
  • Real-Time Photo/Matte Black Selection
  • Wi-Fi, Ethernet & USB Interfaces
  • USB Host Port
Print Speed
  • A1/D size (plain paper): 16 seconds
  • A0 size (glossy): 32 seconds (speed mode)
  • A1/D size (glossy): 65 seconds (speed mode)
Roll Media Handling

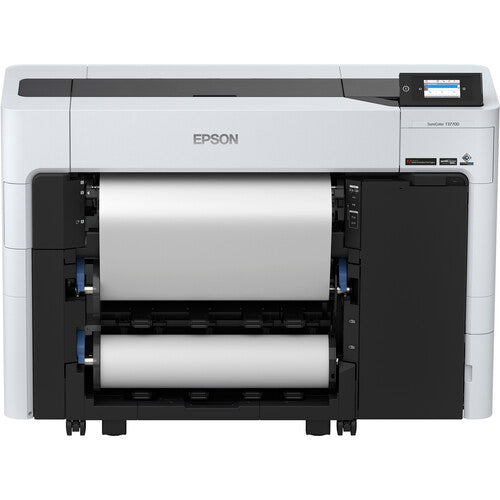

  • Two input rolls (Input Roll #1 can be used as a take-up reel)
  • Take-up reel included
  • Take-up reel configuration: roll print-side in or print-side out (selectable)
  • 10-36" roll widths
  • 2 or 3" core diameter via user-adjustable roll media spindles
  • Up to 6.69" outer diameter
  • 0.07 to 0.8mm thickness
  • Replaceable high-speed internal rotary cutter (auto or manual)
  • Printable barcode tracking
  • The amount of remaining paper can be controlled and monitored automatically from the control panel
Sheet Media Handling
  • Single sheet, front or rear loading
  • 8" minimum width
  • 36" maximum width
  • 8" minimum length
  • Up to 1.5mm thickness
Margins
  • Left/right: 3mm per side (or zero at BorderFree widths)
  • Top/bottom (roll): 3mm top/3mm bottom
  • Top/bottom (sheet): 3mm top/12.7mm bottom
  • BorderFree sizes: 10, 13, 16, 17, 20, 24, or 36" wide
  • 298' maximum printable length
Other Features
  • Real-time black ink selection: dedicated photo black and matte black ink channels are selected automatically based on media type
  • Over 28 IT security features for office or remote office locations, including an IC card option for user control and tracking, SSD encryption, and IEEE 802.1x
  • Includes Adobe Embedded Print Engine for natively processing PDF and PostScript files for fast and reliable printing
  • Maximize productivity with the included Epson software suite and Epson cloud solution PORT2; remotely manage and monitor your printer fleet from the convenience of your laptop or smart device
  • USB expansion port supports optional RFID card readers

Epson T5770 Specs

Key Specs
Functions
Print
Printing Technology
Inkjet
Color Type
Color
Configuration
6 x Individual Cartridge
Ink Color
1 x Cyan
1 x Magenta
1 x Yellow
1 x Red
1 x Photo Black
1 x Matte Black
Print Resolution
2400 x 1200 dpi
Wireless
802.11b/g Wi-Fi
Mobile App Compatible
Yes
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Power Source
AC Adapter (Included)

Printer
Printing Technology
Inkjet
Color Type
Color
Configuration
6 x Individual Cartridge
Ink Color
1 x Cyan
1 x Magenta
1 x Yellow
1 x Red
1 x Photo Black
1 x Matte Black
Compatible Cartridges
Epson T50L, Epson T50S, Epson T51A
Number of Nozzles
9600 Nozzles (Total)
1600 Nozzles (Per Channel)
Print Resolution
2400 x 1200 dpi
Borderless Printing
Yes
Printer Language
Adobe PDF 1.7, Adobe PostScript 3, ESC/P-R, HP-GL/2, HP-RTL
Minimum Line Width
3.15 mil / 0.08 mm
Line Accuracy
±0.1%
Minimum Ink Droplet Size
3.5 pL
Printer Media Handling
Media Handling
Manual Feed, Roll Feed, Take-Up Reel
Media Sizes
Roll Width: 10 to 36" / 25.4 to 91.4 cm
Sheet Width: 8 to 36" / 20.3 to 91.4 cm
Roll Length: 298' / 90.8 m
Media Weight
Roll Feed: 27 lb
Media Thickness
Roll: 2.76 to 31.5 mil / 0.07 to 0.8 mm
Sheet: 59.1 mil / 1.5 mm
Media Roll Diameter
2" / 5.1 cm (Core)
3" / 7.6 cm (Core)
6.69" / 17 cm (Outer)
Margins
0.1" / 3 mm (Sides)
Paper Capacity
Manual Feed Slot: 1 x Sheet
Connectivity
Inputs/Outputs
USB-B 3.0 / 3.1/3.2 Gen 1, RJ45, USB-A
Wireless
802.11b/g Wi-Fi
Direct Printing
USB Port
Internal Memory
4 GB
Mobile App Compatible
Yes
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
OS Compatibility
macOS 10.9.5 or Later
Windows XP or Later
Windows Server 2003 R2 or Later
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Environmental
Operating Temperature
50 to 95°F / 10 to 35°C
Operating Humidity
20 to 80%
Storage Temperature
-4 to 104°F / -20 to 40°C
Storage Humidity
5 to 85% (Non-Condensing)
General
Display Size
4.3"
Display Type
Touchscreen LCD
Power Source
AC Adapter (Included)
Battery
None
AC Input Power
110 to 240 VAC, 50 / 60 Hz at 3.4 A
Power Consumption
80 W (Maximum)
32 W (Ready)
2 W (Sleep)
0.3 W (Standby)
Max Acoustic Noise
49.6 dBA6.6 dBA
Certifications
NRTL, FCC Class B, ENERGY STAR, RoHS
Dimensions (W x H x D)
65 x 39 x 20" / 165.1 x 99.1 x 50.8 cm (Storage)
65 x 39 x 33" / 165.1 x 99.1 x 83.8 cm (Maximum)
Weight
302 lb / 137 kg
Packaging Info
Package Weight
392 lb
Box Dimensions (LxWxH)
69 x 43.7 x 28.5"
