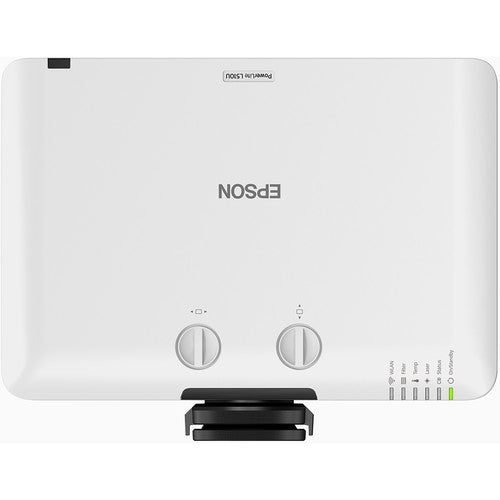

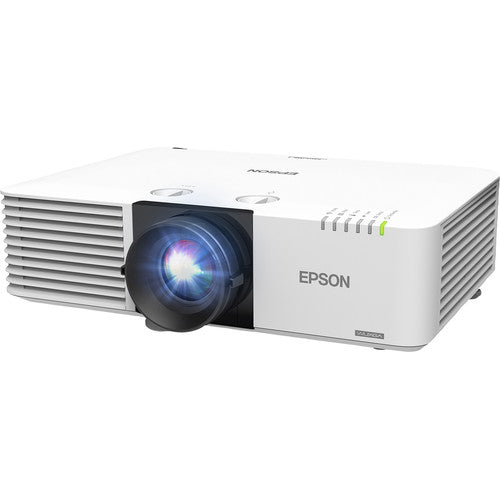

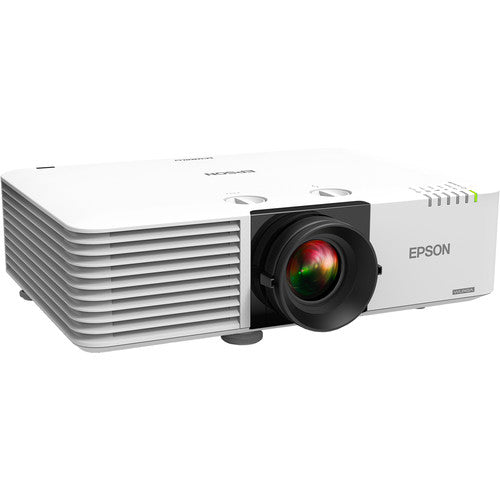

Epson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector


Availability:

SKU:

Barcode:

Collections: Multimedia Projectors

Product type: Laser Projector

Vendor: Epson

$2,799.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Delivery
Key Features
  • White & Color Brightness of 5000 Lumens
  • WUXGA (1920 x 1200) Native Resolution
  • 1.35 to 2.2:1 Throw Ratio
  • HDBaseT, VGA, 2x HDMI Inputs

Epson L510U Overview

Enjoy bright, vibrant images with the Epson PowerLite L510U 5000-Lumen WUXGA 3LCD Laser Projector. Its 5000 lumens of brightness, combined with its 2,500,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution helps ensure that images and text are clear at most viewing distances.

The PowerLite L510U features two VGA and two HDMI inputs to support various source devices. One VGA input can alternatively function as an output, enabling you to daisy-chain your video signal to additional projectors or displays. HDBaseT capability provides uncompressed digital video, audio, and control capability over a single Ethernet cable with compatible equipment. As an added convenience, a VGA cable and an IR remote control are included.

Display Features

  • Designed for bright, vivid color with up to 5000 lumens of color and white brightness
  • Images up to 500" with a native WUXGA (1920 x 1200) resolution
  • Laser light source lasts up to 20,000 hours and provides instant on/off capability
  • Enhanced detail with a 2,500,000:1 dynamic contrast ratio
  • RGB liquid crystal shutter projection system
  • Dichroic mirror separation and prism combine projection method
  • D10 VA LCD with C²Fine
  • Cross-stripe pixel arrangement
  • Micro lens array
  • 192 to 240 Hz refresh rate

Network Control & Management Features

  • Message broadcasting
  • Email notification
  • SNMP
  • Web remote & control
  • Secure HTTP
  • Compatible with PJLink (Class2), AMX Device Discovery, Crestron Integrated Partner, Crestron Connected, Extron IP Link, Extron XTP, and Control4 Simple Device Discovery Protocol for simplified access and maintenance
  • Optional wireless networking and wireless content sharing with Epson iProjection when used with the separately sold wireless module

Additional Features

  • Virtually maintenance-free operation for the life of the optical engine
  • Designed for flexible installation with up to ±50% vertical and ±20% horizontal manual lens shift
  • Connectivity options include VGA, Ethernet, 1/8" audio, 2x HDMI, and more
  • 360° installation flexibility with geometric correction tools such as horizontal and vertical keystone, arc correction, Quick Corner, and more
  • Constant Brightness Mode fine-tunes the brightness setting to help maximize run time
  • Foot adjustment: front/rear -2 to +10°, left/right ±1.5°
  • A/V mute
  • Contents playback
  • Image modes: Dynamic, Presentation, Cinema, sRGB, DICOM simulation mode, Multi-projection
  • Split screen
  • Customizable logo
  • Sleep mode with timer
  • Auto power on (off, HDMI1, VGA)
  • Quick startup
  • High Altitude Mode
  • Auto Source Search
  • QR code display
  • Firmware updates via LAN or USB
  • 7-second startup (with the Epson logo); <5 second startup via auto power on
  • Instant Off
  • 20,000-hour air filter maintenance cycle (Normal Mode, 77°F)
  • Wireless remote functional up to 26.2' away
  • Remote front operating angle: L/R ±60°, U/D -20 to 30°
  • Remote rear operating angle: L/R ±30°, U/D 10 to 50°
  • RoHS compliant
  • Recyclable design
UPC: 010343943643

Epson L510U Specs

Image Display
Display System 3-Chip 0.67" Polysilicon TFT LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Max Brightness White: 5000 Lumens
Color: 5000 Lumens
Uniformity 86%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 2,500,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15 to 92 kHz
Vertical: 50 to 85 Hz
Lens
Focus Manual
Lens f/1.5 - 1.7 (f = 20 - 31.8 mm)
Lens Shift Vertical: ± 50%
Horizontal: ± 20%
Optical Zoom Manual: 1.6x
Throw Distance 4.724 - 78.215' / 1.44 - 23.84 m
Throw Ratio 1.35 to 2.2:1
Projection Size 50 - 500" / 1.27 - 12.70 m
Features
Keystone Correction Vertical: ± 30°
Horizontal: ± 30°

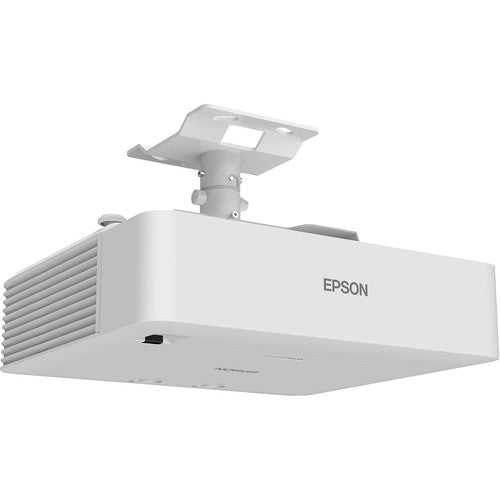

Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker Yes (Mono)
Speaker Power 10W
Projection Tilt Option Yes
Input/Output Connectors
Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Control, Remote, Video Input/Output
2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Input/Output
1 x RS-232 (DE-9/DB-9) Control Input/Output
1 x USB 2.0 (USB Type-A) Service Input
1 x USB 2.0 (USB Type-B) Service Input
1 x Ethernet (RJ45) LAN Input/Output
2 x 1/8" / 3.5 mm Mini Audio Input
1 x 1/8" / 3.5 mm Mini Audio Output
Memory Card Slot None
Hardware
Wireless LAN / Wi-Fi No, Optional Adapter Available
General
Light Source Laser Phosphor
Lamp Power 205 W
Expected Lamp Life Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours
Fan Noise Full Brightness: 37 dB
Medium Brightness: 25 dB
Security Cable Lock Slot
Padlock
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 353 W
Low Brightness: 254 W
Standby Mode (Lamp Off): 2 W
Max Operating Altitude 4921' / 1499 m
Dimensions (W x H x D) 17.3 x 4.7 x 12.0" / 43.9 x 11.9 x 30.5 cm Excluding feet
17.3 x 5.4 x 12.0" / 43.9 x 13.7 x 30.5 cm Including feet
Weight 18.7 lb / 8.48 kg Approximately
Packaging Info
Package Weight 25.6 lb
Box Dimensions (LxWxH) 22 x 21.2 x 8.2"
