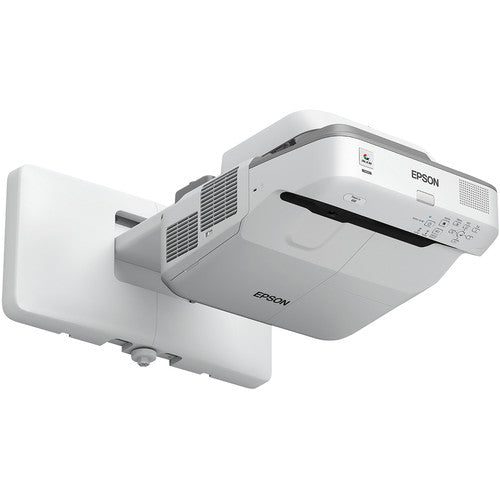

Enjoy virtually shadow-free presentations with the Epson PowerLite 680 3500-Lumen XGA Ultra-Short Throw 3LCD Projector. It features an ultra-short 0.32 to 0.43:1 throw ratio and can be mounted to the wall very close to your screen with an optional mount to minimize the likelihood of someone passing between the projector and the screen. Its XGA (1024 x 768) native resolution is well suited for data formats.
The PowerLite 680 sports an RCA composite video, two VGA, and three HDMI inputs, allowing you to connect a multitude of analog and digital sources. One of the HDMI ports is MHL-compatible for connecting a similarly equipped smart device, and one VGA input can instead function as an output for daisy-chaining multiple projectors or displays. An analog audio input is also onboard, along with a 16W speaker, ensuring that the audio you want accompanying your presentation is heard; its analog audio output will enable you to route the audio to an external sound system if you prefer. The PowerLite 680 is Ethernet and RS-232 controllable and is designed to integrate with the SMART Board M680 and 880 interactive whiteboards.
Specifically designed for use with the SMART Board M680 and 880 interactive whiteboards
Designed for seamless integration with your SMART Board – connect and control your display via the SMART Extended Control Panel (ECP)
The 3-chip, 3LCD design offers enhanced color brightness with 3500 lumens of color and white brightness
Lamp designed to last up to 10,000 hours in ECO Mode
XGA (1024 x 768) resolution with a 4:3 native aspect ratio
Achieve a 77" image from less than 7" away with virtually no shadow interference, thanks to the ultra-short-throw design
Manage your display and send announcements remotely over your network with the included software
Versatile connectivity options, with three HDMI inputs, one of which is MHL-capable for mirroring your compatible mobile devices
Support for Chromebook, iOS, Android, Mac, and Windows devices connected on the same network; a wireless LAN adapter is available separately
UPC: 010343930933
Epson 680 Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1024 x 768 (XGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: WUXGA - 1600 x 1200 |
| Max Brightness | 3500 Lumens |
| Aspect Ratio | Native: 4:3 |
| Dynamic Contrast Ratio | 14,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.6 (f = 3.7 mm) |
| Lens Shift | None |
| Optical Zoom | None |
| Throw Distance | 13.386 - 23.622" / 34 - 60 cm |
| Throw Ratio | 0.32 to 0.43:1 |
| Projection Size | 55.4 - 92.7" / 140.72 - 235.46 cm |
Features
| Keystone Correction | Manual-Vertical: ± 3° Manual-Horizontal: ± 3° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
Input/Output Connectors
| Inputs/Outputs | 2 x HDMI Audio/Video (Input) 1 x HDMI with MHL Support Audio/Video (Input) 1 x VGA (DE-15) Video (Input) 1 x VGA (DE-15) Video (Input/Output) 1 x Composite (RCA) Video (Input) 3 x 1/8" / 3.5 mm Mini Audio (Input) 1 x 1/8" / 3.5 mm Mini Microphone (Input) 1 x 1/8" / 3.5 mm Mini Audio (Output) 1 x Ethernet (RJ45) LAN (Input) 1 x RS-232C (Unspecified Connector) Control (Input) 1 x USB Type-B Female (Input) 1 x USB Power (Output) |
Hardware
| Internal Storage | None |
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 250 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 35 dB Low Brightness: 30 dB |
| Security | Cable Lock Slot Padlock Password Protection |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 373 W Low Brightness: 324 W Standby Mode (Lamp Off): 2.2 W Standby Mode (Lamp Off): 0.23 W |
| Temperature | Operating 41 to 104°F (5 to 40°C) |
| Dimensions (W x H x D) | 14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm With feet 14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm Without feet |
| Weight | 12.6 lb / 5.72 kg |
Packaging Info
| Package Weight | 19 lb |
| Box Dimensions (LxWxH) | 21 x 19 x 9.7" |
