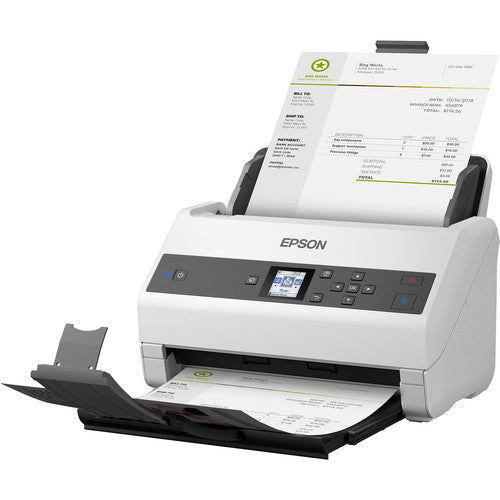

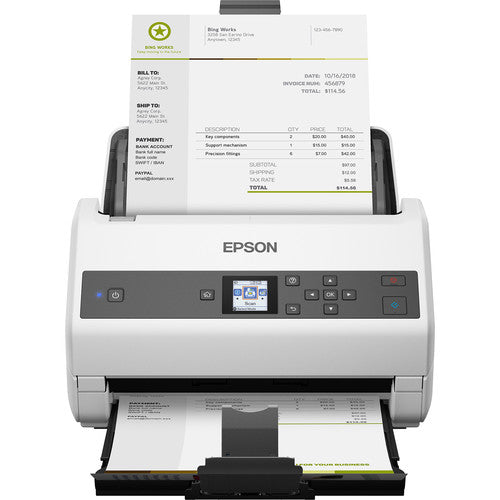

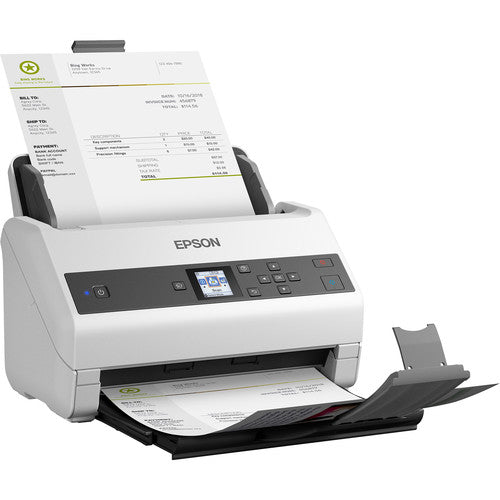

Designed for efficient, high-volume scanning, the DS-870 Color Duplex Workgroup Document Scanner from Epson is a duplex ADF scanner that holds up to 100 letter-size sheets at a time. Producing files at optical resolutions of 600 dpi and accepting documents as small as 2 x 2" and as large as 8.5 x 240," the DS-870 digitizes letter-sized documents at a rate of 65 ppm in simplex mode and 130 ipm in duplex mode. Additionally, the scanner has an impressive daily duty cycle of 7000 pages per day. For streamlining workflow, the unit comes with Epson Document Capture Software, which lets you create searchable PDFs and scan to online storage accounts such as Evernote, SharePoint, and Google Drive.
- Duplex ADF Scanner with an optical resolution of 600 dpi and 24-bit external color depth for crisp imaging and sharp scans
- 100-sheet ADF scans documents from 2 x 2" up to 8.5 x 240"
- Impressive scanning speeds of 65 in simplex mode and 130 in duplex mode for both black-and-white and color documents
- Slow speed mode for delicate sheets
- Epson Document Capture software creates searchable PDFs
- Scans to online storage accounts including Evernote, SharePoint, and Google Drive
- Daily duty cycle of 7000 pages a day
UPC: 010343945012
Epson DS-870 Specs
Scanner
Maximum Resolution | 600 dpi (Optical) 1200 dpi (Interpolated) |
Scan Modes | Color, Grayscale, Monochrome |
Color Depth | 30-Bit (Internal) 24-Bit (External) |
Grayscale Depth | 30-Bit (Internal) 24-Bit (External) |
Image Sensor | 2 x Contact Image Sensor (CIS) |
Duplex Scanning | Yes |
Single Pass Duplex | Yes |
Scan Speed | Simplex Speed 65 ppm in Color/Grayscale Duplex Speed 130 ipm in Color/Grayscale |
Media Handling
Maximum Scan Size | W: 8.5 x L: 240" / W: 21.6 x L: 609.6 cm |
Maximum Media Thickness | 0.3 mil / 1.2 mm |
Media Handling | Automatic Document Feeder (ADF) |
Media Types | Business Card, ID Card, Plain Paper, Plastic ID Card |
Sheet Capacity | 100 Sheets |
Multi-Feed Detection | Yes |
Media Weight | 17 to 250 lb / 27 to 413 gsm |
Daily Duty Cycle | 200,000 Scans |
Daily Life Expectancy | 7000 Sheets |
Connectivity
Interface | USB 3.0 |
Wireless | None |
Drivers | TWAIN, ISIS |
Operating System Support | Windows, macOS/OS X |
Environmental
Operating Temperature | 41 to 95°F / 5 to 35°C |
Operating Humidity | 15 to 80% |
Storage Temperature | -13 to 140°F / -25 to 60°C |
Storage Humidity | 15 to 85% |
General
Control Panel | Color LCD |
Power Source | AC Adapter |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC at 2 A |
Power Consumption | 18 W (Maximum) |
Certifications | RoHS, as per Manufacturer |
Dimensions (W x D x H) | 11.7 x 6.7 x 6.6" / 29.6 x 16.9 x 16.7 cm |
Weight | 7.9 lb / 3.58 kg |
Warranty Length | Limited 3-Year Warranty |
Packaging Info
Package Weight | 10.865 lb |
Box Dimensions (LxWxH) | 14.6 x 12.6 x 10.6" |
