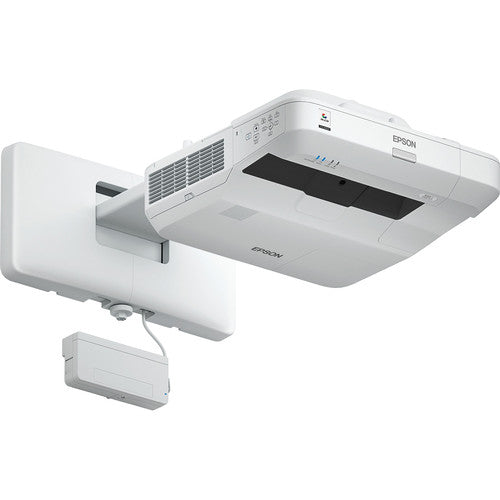

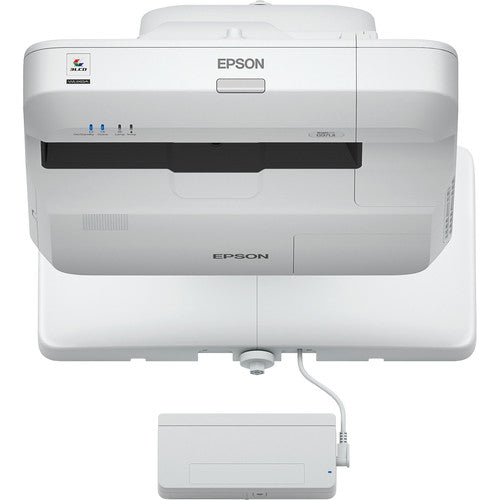

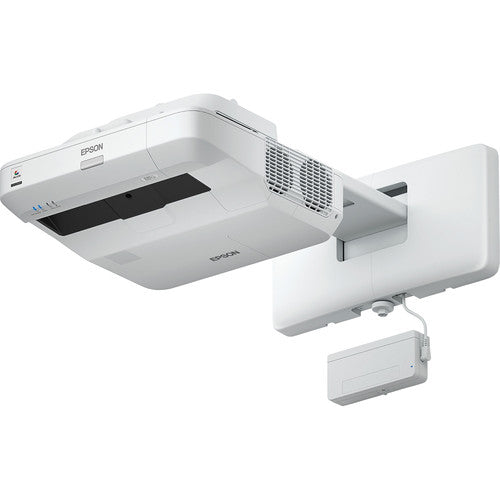

The BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector from Epson features a Full HD WUXGA display and 4400 lumens of color and white brightness. The 696Ui delivers dynamic images up to 100" from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen and touch-based interactivity. Furthermore, the projector offers encrypted enterprise-level security, wireless support, and content sharing for a variety of devices including Chromebooks, which can be used for BYOD classrooms. In addition, computer-free whiteboard sharing enables remote collaboration with offsite participants. It also includes a 1-year subscription to SMART Notebook.
- 3LCD, 3-chip technology with 4400 lumens of color/white brightness
- View from anywhere in the room, up to 100" away for clear legibility and visibility
- Pen- and touch-based interactivity allows up to six users to draw, share, and collaborate at once using familiar gestures
- Encrypted enterprise-level security compatible with WPA, WPA2-PSK and WPA2-EAP security protocols
- Wirelessly connect up to 50 devices, simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, PC, Mac, iOS, and Android devices
- Easy content sharing between the big screen and wirelessly connected mobile devices, for individualized learning
- Whiteboard sharing remote collaboration allows others to see and write to the whiteboard, even when they're not in the room
- Wall-mounted control panel for easy projector control at your fingertips with access to on/off, source selection, and computer-free whiteboarding
- Seamless integration with curriculum software, includes 1-year subscription and support for SMART Notebook
UPC: 010343930940
Epson 697UI Specs
Image Display
| Display System | 3-Chip LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Max Brightness | White: 4400 Lumens Color: 4400 Lumens |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 16000:1 |
Lens
| Focus | Manual |
| Lens | f/0 - 1.6 (f = 0 - 4.2 mm) |
| Throw Ratio | 0.22 to 0.37:1 |
| Projection Size | 70.4 - 100" / 178.82 - 254.00 cm |
Features
| Keystone Correction | Horizontal: ± 3° Vertical: ± 3° |
Input/Output Connectors
| Inputs/Outputs | 1 x HDMI Video (Input) 1 x HDMI with MHL Support Video (Input) 1 x VGA (DE-15) Video (Output) 1 x Composite (RCA) Video (Input) 2 x 1/8" / 3.5 mm Mini Audio (Output) 1 x USB Type-B Female (Input) 2 x USB Type-A Male (Input) 1 x RS-232C (Unspecified Connector) Service (Input/Output) 1 x VGA (DE-15) Video (Input) |
General
| Lamp Power | 3000 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 38 dB Low Brightness: 30 dB |
| Security | Password Protection Security Bar |
| Power Consumption | Medium Brightness: 477 W Medium Brightness: 0.22 W |
| Max Operating Altitude | 20' / 6 m |
| Temperature | Operating 41 to 104°F (5 to 40°C) |
| Dimensions (W x H x D) | 18.7 x 17.6 x 5.1" / 47.5 x 44.7 x 13.0 cm |
| Weight | 18.7 lb / 8.5 kg |
Packaging Info
| Package Weight | 56 lb |
| Box Dimensions (LxWxH) | 30.65 x 22.5 x 13" |
