  • Epson 36" SureColor T5470 Large Format Printer
Epson 36

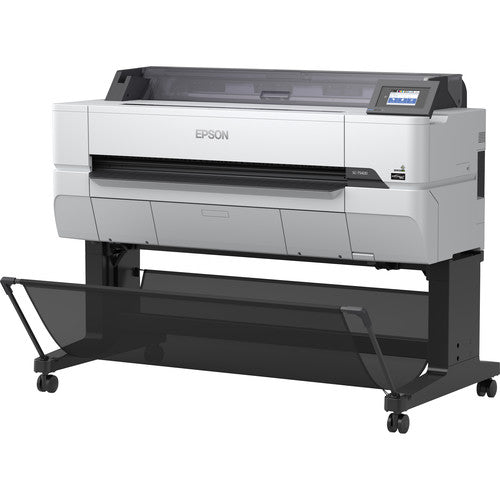

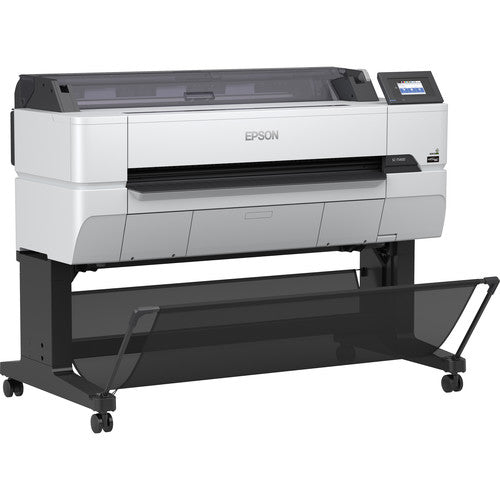

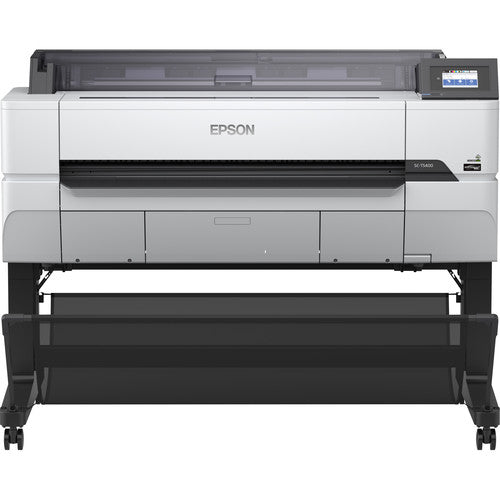

Epson 36" SureColor T5470 Large Format Printer


Availability:

SKU:

Barcode:

Collections: Printers

Product type: Printer

Vendor: Epson

$2,295.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Delivery
Key Features
  • Max Resolution: 2400 x 1200 dpi
  • Max Print Width: 36"
  • Print Speed: 22 x 33" Print in 22 sec
  • Handles Media up to 11.8 mil Thick

Epson T5470 Specs

Printer
Printing Technology Inkjet
Ink Type Pigment Based
Ink Color 1 x Cyan
1 x Magenta
1 x Yellow
1 x Black
Compatible Ink Cartridges Epson T41
Number of Cartridges 4 Individual Cartridges
Number of Nozzles 800 Nozzles (Per Channel)
Print Resolution 2400 x 1200 dpi
Borderless Printing Yes
Minimum Ink Droplet Size 4 pL
Print Speed (By Size) 22.01 x 34.02" / 55.9 x 86.4 cm: 22 Seconds
Printer Language ESC/P-R, HP-GL/2, HP-RTL
Media Handling
Paper Handling Manual Feed, Roll Feed
Media Roll Diameter 2" / 5.1 cm (Core)
3" / 7.6 cm (Core)
6.6" / 16.8 cm (Outer)
Media Width 10.0 to 36.0" / 25.4 to 91.4 cm (Roll)
8.3 to 36.0" / 21.1 to 91.4 cm (Sheet)
Media Thickness 11.8 mil / 0.3 mm
Margins 0.1" / 3.0 mm
Connectivity
Interface USB 3.0, Wi-Fi, Ethernet
Operating System Support Windows, macOS/OS X
Environmental
Operating Temperature 65 to 75°F / 18 to 23°C (Recommended)
50 to 95°F / 10 to 35°C
Operating Humidity 45 to 60% (Recommended)
20 to 80%
Storage Temperature -4 to 104°F / -20 to 40°C
Storage Humidity 5 to 85%
General
Control Panel 4.3" / 10.9 cm LCD
AC Input Power 110 to 240 VAC, 50 / 60 Hz at 2.8 A
Power Consumption Printer
38 W (Maximum)
13 W (Ready)
1.3 W (Sleep)
0.25 W (Standby)
Max Acoustic Noise 50 dBA
Dimensions (W x H x D) 55.0 x 28.0 x 42.0" / 139.7 x 71.1 x 106.7 cm (with Stand)
Weight 168.0 lb / 76.2 kg (with Stand)
Packaging Info
Package Weight 286 lb
Box Dimensions (LxWxH) 58.5 x 37 x 32"



Epson T5470 Overview

Able to produce precise 36" wide prints at a max resolution of 2400 x 1200 dpi, the Epson 36" SureColor T5470 Large Format Printer is capable of producing blueprints, line drawings, and posters. The T5470 is also quite fast, able to print a D-sized 22 x 34 print in just 22 seconds. Versatility is also key with handling of media up to 11.8 mil thick as well as either cut-sheet or roll media with 2" or 3" cores and maximum outer diameter of 6.6".

The SureColor T-series utilizes an UltraChrome XD2 pigmented ink set to deliver vivid color and sharp lines on numerous paper types. The system also enables the creation of archival prints that are smudge and water resistant. The cartridges are front-loading for convenience and come in sizes up to 350mL.

A 4.3" touchscreen is located on the front of the printer, and the T5470 also comes with a stand that has a horizontal catch basket for handling your finished print. Additionally, the printer can easily connect to your computer via USB 3.1 Gen 1, Wi-Fi, or Ethernet.

Features

  • Produce accurate A1/D-sized (22 x 34") prints in 22 seconds
  • Use the large, intuitive 4.3" LCD color touchscreen for print tasks
  • Use high-capacity replacement ink cartridges up to 350mL for less downtime
  • Protect important information with advanced network security and encryption features
  • Easily print from tablets, smartphones, and more with integrated wireless, plus router-free Wi-Fi Direct printing
  • The PrecisionCore MicroTFP printhead offers Precision Droplet Control for photographic images, precise lines, and sharp text
  • Standard warranty includes one-year of on-site service, free phone support Monday through Friday, as well as parts and labor
