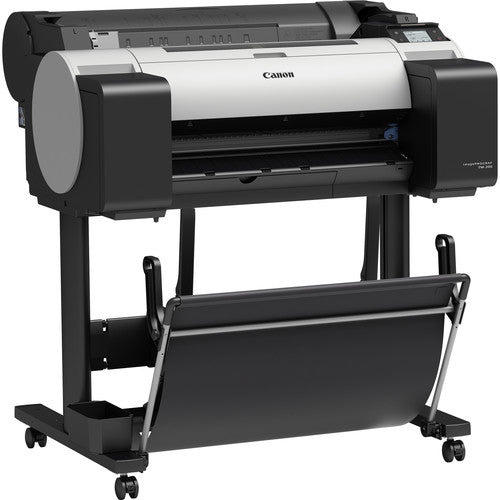

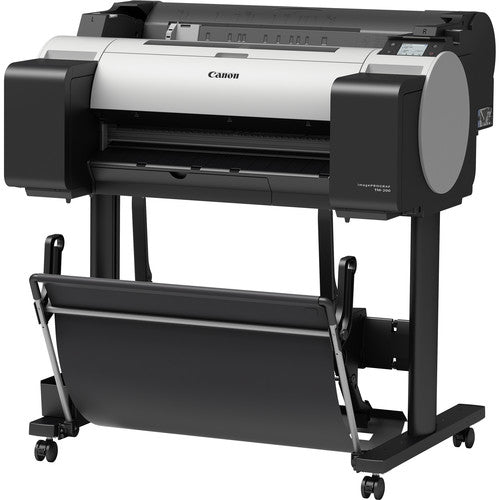

Canon imagePROGRAF TM-200 24" Large-Format Inkjet Printer
Key Features
- Max Resolution: 2400 x 1200 dpi
- Max Printable Width: 24"
- High-Density Printhead Technology
- 5-Color LUCIA Ink: UV & Water Resistant
Canon TM-200 Specs
Printer
| Printing Technology | Inkjet |
| Ink Type | Pigment Based (Black, Cyan, Magenta, Matte Black, Yellow) |
| Ink Color | 1 x Black 1 x Matte Black 1 x Cyan 1 x Magenta 1 x Yellow |
| Compatible Ink Cartridges | Canon PFI-120, Canon PFI-320 |
| Number of Cartridges | 5 Individual Cartridges |
| Number of Nozzles | 15,360 Nozzles (Total) 5120 Nozzles (Matte Black) 2560 Nozzles (Per Other Color) |
| Print Resolution | 2400 x 1200 dpi |
| Borderless Printing | Yes |
| Minimum Ink Droplet Size | 5 pL (Black, Cyan, Magenta, Matte Black, Yellow) |
| Printer Language | Standard: HP-GL/2, HP-RTL, JPEG, SG Raster |
Media Handling
| Paper Handling | Front Tray, Media Cutter, Output Tray, Roll Feed |
| Media Roll Diameter | 5.9" / 15 cm (Outer) |
| Media Length | Printer 8.0" to 59.0' / 0.2 m to 18.0 m (Roll) Printer 8.0" to 63.0" / 20.3 cm to 160.0 cm (Sheet) |
| Media Width | Printer 8.0 to 24.0" / 20.3 to 61.0 cm (Sheet) |
| Media Thickness | Printer 3.9 to 31.5 mil / 0.1 to 0.8 mm (Sheet) |
Connectivity
| Interface | Printer USB 2.0, Wi-Fi, Ethernet |
| Direct Printing | Apple AirPrint, USB Port, Wi-Fi Direct |
| Operating System Support | Windows, iOS, macOS/OS X |
Environmental
| Operating Temperature | 59 to 86°F / 15 to 30°C |
| Operating Humidity | Printer 10 to 80% |
General
| Control Panel | 3" / 7.6 cm Color Touchscreen LCD |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Printer 3.6 W (Standby) Printer 69 W (Maximum) Printer 0.3 W (Off) |
| Dimensions (W x H x D) | Printer 38.0 x 42.0 x 34.0" / 96.5 x 106.7 x 86.4 cm (with Basket Open and with Stand) |
| Weight | 112.0 lb / 50.8 kg (with Stand) |
Packaging Info
| Package Weight | 179.5 lb |
| Box Dimensions (LxWxH) | 42.75 x 37.5 x 34.25" |
Canon TM-200 Overview
Create stunning prints with the imagePROGRAF TM-200 24" Large-Format Inkjet Printer from Canon. Able to handle media up to 24" wide and with a maximum resolution of 2400 x 1200 dpi, users can create high-quality documents and graphics with sharp text at large-format sizes. Featuring a high-precision, high-density printhead, with a total of 15,360 nozzles, the printer lays down 5 picoliter size droplets that produce sharp lines and fine details for exceptional image quality.
Utilizing Canon's 5-Color Lucia Inks, the TM-200 is ideal for technical documents, CAD drawings, GIS maps, posters, signs, and displays, and the UV and water-resistant inks add a level of protection that can withstand many outdoor conditions, making the printer well-suited for creating and taking building plans onto construction sites. This also makes the printer an excellent option for posters, signs, and displays.
For operating the printer, a stand and a 3" color touchscreen are featured, and a dedicated USB port permits printing directly from a thumb drive. The printer has wired and wireless networking via Ethernet, and Wi-Fi connectivity, and it has USB 2.0 for simple connection to a computer. Additionally, the unit's Sub-Ink Tank System allows most of the available ink to be used before replacement, which eliminates wasted ink and saves on operating costs.
6-Channel PF-06 Printhead
The high density 6-channel PF-06 printhead has a maximum resolution of 2400 x 1200 dpi and is designed for fast printing with minimal mist spray. With a total of 15,360 nozzles laying down 5 picoliter-size ink droplets the printer is able to produce clean lines and text which produce sharp detail and excellent image quality.
5-Color LUCIA Ink: UV & Water Resistant
Featuring an all-new 5-color LUCIA ink set, this UV and water resistant ink is formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine these inks with water resistant media and you have printed documents that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Additionally, this makes the printer well-suited for creating outdoor poster displays and store signs.
Sub-Ink Tank System
The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink and cutting down on consumable costs. The empty tanks can also be replaced without stopping the printer, which is useful during long print jobs.
3" Color Touchscreen
Featuring a 3" color touchscreen operation panel, the TM-200 makes it easy to view printer information as well as perform simple operations.
Wi-Fi Compatible
With Wi-Fi connectivity you can transfer technical drawing files and speed up workflow. No Wi-Fi router is needed providing greater freedom during installation.
Quiet Operation
The TM-200 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
Direct USB Thumb Drive Printing
An accessible USB port permits the use of a thumb drive for direct printing of files without the use of a computer.
Bundled Software and Tools
The TM-200 Printer comes with a variety of software and management tools:
TM Unified Printer Driver
Direct Print and Share
Accounting Manager
PosterArtist Lite
AutoCAD Optimized Image Driver
Device Management Console
Media Configuration Tool
Apple AirPrint
Canon Print Service
TM Unified Printer Driver
Direct Print and Share
Accounting Manager
PosterArtist Lite
AutoCAD Optimized Image Driver
Device Management Console
Media Configuration Tool
Apple AirPrint
Canon Print Service
