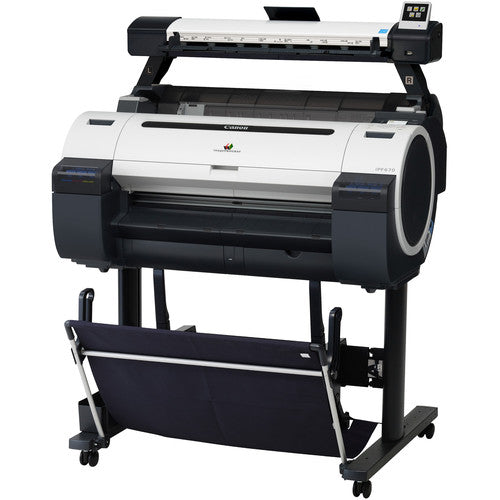

Canon imagePROGRAF iPF670 24" Large-Format Inkjet Printer with L24ei Scanner


Availability:

SKU:

Barcode:

Collections: Printers

Product type: Printer

Vendor: Canon

$1,895.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Tab title Delivery
Key Features
  • Max Resolution: 2400 x 1200 dpi
  • Max Printable Width: 24"
  • Max Printable Length: 59'
  • High-Density Printhead Technology

Canon IPF670 MFP Specs

Printer
Printing Technology Inkjet
Ink Type Pigment Based (Matte Black)
Dye Based (Black, Cyan, Magenta, Yellow)
Ink Color 1 x Black
1 x Matte Black
1 x Cyan
1 x Magenta
1 x Yellow
Compatible Ink Cartridges Canon PFI-107
Number of Cartridges 6 Individual Cartridges
Number of Nozzles 5120 Nozzles (Matte Black)
2560 Nozzles (Per Other Color)
15,360 Nozzles (Total)
Print Resolution 2400 x 1200 dpi
Borderless Printing Yes
Minimum Line Width 0.79 mil / 0.02 mm
Line Accuracy ±0.1%
Minimum Ink Droplet Size 4 pL
Printhead Swath 1.1" / 2.8 cm
Print Speed (By Size) 23.39 x 33.11" / 59.41 x 84.1 cm: 28Seconds
Printer Language Canon GARO, HP-GL/2, HP-RTL
Scanner
Image Sensor Type Contact Image Sensor (CIS)
Maximum Resolution 600 dpi (Optical)
Maximum Scan Size W: 24 x L: 109" / W: 60.96 x L: 276.86 cm
Scan Speed 1" / 2.54 cm per Second at 200 dpi and 24-Bit Resolution (Color)
3" / 7.62 cm per Second at 200 dpi and 8-Bit Resolution (Grayscale)
Color Depth 24-Bit
Grayscale Depth 8-Bit
Accuracy ±0.2%
Media Handling
Paper Handling Manual Feed, Roll Feed
Media Roll Diameter 5.9" / 15 cm (Outer)
Media Length 63.0" / 1.6 m (Sheet)
59.0' / 18.0 m (Roll)
Media Width 8.0 to 24.0" / 20.3 to 61.0 cm (Sheet)
10.0 to 24.0" / 25.4 to 61.0 cm (Roll)
Media Thickness 2.8 to 31.5 mil / 0.1 to 0.8 mm
Connectivity
Interface USB 2.0, Ethernet
Direct Printing USB Port
Operating System Support Windows, macOS/OS X
Environmental
Operating Temperature 59 to 86°F / 15 to 30°C
Operating Humidity 10 to 80%
General
Control Panel Touchscreen LCD
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 140 W (Maximum)
5 W (Standby)
0.5 W (Off)
Dimensions (W x H x D) 39.0 x 52.0 x 34.0" / 99.1 x 132.1 x 86.4 cm (with Basket Open, with Stand)
Weight 128.2 lb / 58.2 kg (without Stand)
Packaging Info
Package Weight 206 lb
Box Dimensions (LxWxH) 41 x 10 x 8"



Canon iPF670 MFP Overview

Produce posters and signage easily with the imagePROGRAF iPF670 24" Large-Format Inkjet Printer from Canon. This unit uses a High-Density Printhead to create detailed prints with a resolution of 2400 x 1200 dpi on documents up to 24" wide and up to 59' long. Also, it can output an A1 (23.4 x 33.1") drawing in Draft mode in approximately 28 seconds by using Canon's L-COA (Large Format Printer Common Architecture) print controller, and it has an Economy mode for saving ink.

Ensuring color accuracy and print longevity is a five-color dye/pigment Reactive Ink set. The iPF670 also utilizes a sub-ink tank system that ensures all of the ink available is used before replacing a cartridge and allows for cartridge replacement without stopping the printer for long print jobs.

Along with these printing capabilities, this multi-function unit offers high-quality scanning of large-format documents at an optical resolution of 600 dpi. Able to accept documents up to 26" wide, the L24ei has a scan width of 24" and can work with media as long as 109".

Bundled with the printer is a variety of software for monitoring your printer's status and improving productivity. Among the included software are a few status monitors, a plug-in for Microsoft Office, an optimized module for AutoCAD, and PosterArtist Lite. Additionally, it has both USB 2.0 and Ethernet connectivity options.

  • The dye/pigment Reactive Ink set uses four colorfast dye inks and two channels of pigment black for precise lines. Also, the magenta ink is reformulated to produce a wider color gamut in the red and orange spectrums.
  • The High-Density printhead features 15,360 nozzles and a minimum droplet size of 4 picoliters. This allows for 2400 x 1200 dpi output with line accuracy of ±0.1% and lines as thin as 0.02mm.
  • The L24ei scanner has an optical resolution of 600 dpi. It will accept documents up to 26" wide, has a scan width of 24", and can scan media up to 109".
  • Direct Print & Share for PCs allows for printing directly from a cloud service or a networked folder on your computer.
  • imagePROGRAF Print Utility is a mobile app for iOS that enables wireless printing via an Apple iPad.
  • Direct Print & Share for PCs allows for printing directly from a cloud service or a networked folder on your computer.
  • Canon Printer Driver, imagePROGRAF Status Monitor, and imagePROGRAF Accounting Manager allow users to monitor the details of their current jobs and printer.
  • The plug-in for Microsoft Office can easily convert letter-sized documents to poster size.
  • To improve reliability and productivity, an optimized module for AutoCAD software is included.
  • PosterArtist Lite software is a step-by-step program with numerous royalty-free images, art, and templates for creating your own posters and signage.
