SPECIFICATIONS:
Short Term Repeatability - White:
0.1 DE*94 (D50, 2°)
Inter-Instrument Agreement:
Average 0.4 DE*94 (deviation from X-Rite manufacturing standard at a temperature of 23°C on 12 BCRA tiles (D50, 2°))
Measurement Conditions:
M0, M1 & M2
Minimal Media Thickness:
Typical 0.16mm, Range: 0.08 to 0.45mm
Photometric Range:
10 nm; Sampling interval 3.5 nm (100 bands)
Spectral Analyzer:
i1® technology (holographic diffraction grating with diode array)
Spectral Range:
380 - 730 nm
Spectral Reporting:
10 nm
Aperture:
Effective measurement aperture during scanning is depending on the patch size
Unit Color:
Silver/Black
Dimensions (length, width, height):
Width 42 cm, depth 16 cm, height 12 cm (16.5 x 6.3 x 4.7 inches)
Weight:
3.2 kg (112.9 oz)
Communication Interface:
USB
Experience Level:
Intermediate to Advanced
Software Development Kit:
Available for OEM customers
Sheet Size:
- A4+
- Width: 6 to 23 cm (2.4 to 9 in.)
- Length: 17 cm to 66 cm (6.7 to 26 in.)
Calibration:
Automatic on Internal Calibration Reference
Optical Brigtener Compensation (OBC):
Optical Brightener Compensation (OBC) with i1Profiler software
Warranty:
Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
What's Included?:

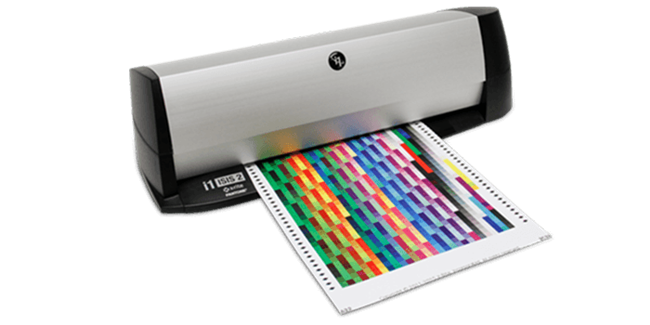

i1iSis 2 spectrophotometer; main power cable, USB cable
Connectivity:
Powered USB port
