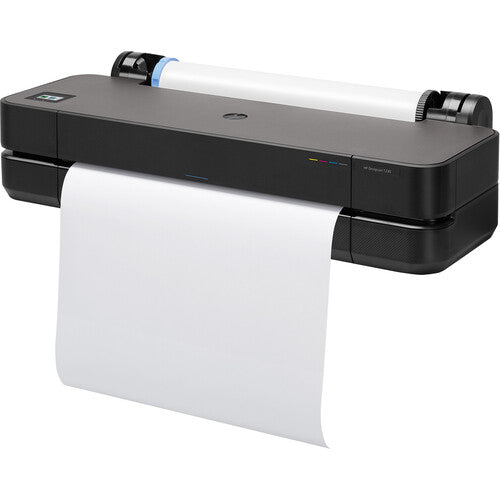

The DesignJet T230 24" Large Format Wireless Plotter Printer from HP is ideal for AEC, GIS, and MCAD professionals who need to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text. Print resolution is an impressive 2400 x 1200 dpi, and this powerful unit accepts roll and sheet media up to 24" wide. Designed for speed and efficiency, you can send multiple files in one click with HP Click software, and 22 x 34" media can be printed in 35 seconds. Additionally, with the HP Smart app, you can wirelessly manage and print your jobs from a smartphone or tablet.
- Designed for AEC, GIS, and MCAD professionals
- Prints maps, technical drawings, and posters
- Provides an intuitive driver and true print preview
- Manages multiple files in one click with HP Click software
- 22 x 34" print speeds in 35 seconds
HP T230 Specs
Functions |
Printer
Printing Technology | Thermal Inkjet |
Color Type | Color |
Configuration | 4 x Individual Cartridge |
Ink Type | Dye-Based (Cyan, Magenta, Yellow) Pigment-Based (Black) |
Ink Color | 1 x Black 1 x Cyan 1 x Magenta 1 x Yellow |
Compatible Ink Cartridges | HP 712 |
Print Resolution | 2400 x 1200 dpi |
Borderless Printing | No |
Printer Language | JPEG, URF |
Minimum Line Width | 0.79 mil / 0.02 mm |
Line Accuracy | ±0.1% |
Minimum Ink Droplet Size | 5.5 pL (Cyan, Magenta, Yellow) 12 pL (Black) |
Print Speed (By Size) | 22 x 34" / 558.8 x 863.6 mm: 35 Seconds |
Printer Media Handling
Paper Handling | Manual Feed, Media Cutter, Roll Feed |
Media Sizes | Sheet Width: 8.3 to 24" / 21.1 to 61 cm Roll Width: 11 to 24" / 27.9 to 61 cm Sheet Length: 11 to 74.7" / 27.9 to 189.7 cm |
Media Thickness | 11.8 mil / 0.3 mm |
Margins | Roll 0.2" / 5.1 mm (Leading, Sides, Trailing) Sheet 0.2" / 5.1 mm (Leading, Sides) 0.7" / 17.8 mm (Trailing) |
Connectivity
Interface | USB 2.0, RJ45 |
Wireless | Wi-Fi |
Direct Printing | HP Smart |
Internal Memory | 512 MB |
Operating System Support | Windows, macOS/OS X |
Environmental
Operating Temperature | 41 to 104°F / 5 to 40°C |
Operating Humidity | 20 to 80% |
Storage Temperature | -13 to 131°F / -25 to 55°C |
General
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Consumption | 35 W (Maximum) 5.6 W (Ready) 2.1 W (Sleep) 0.2 W (Standby) |
Max Acoustic Noise | 42 dBA (Pressure) 5.8 BA (Power) |
Dimensions (W x H x D) | 39.9 x 11.2 x 17.3' / 1216.2 x 341.4 x 527.3 cm |
Weight | 47.4 lb / 21.5 kg |
Packaging Info
Package Weight | 59.5 lb |
Box Dimensions (LxWxH) |
45 x 22.8 x 15" |
