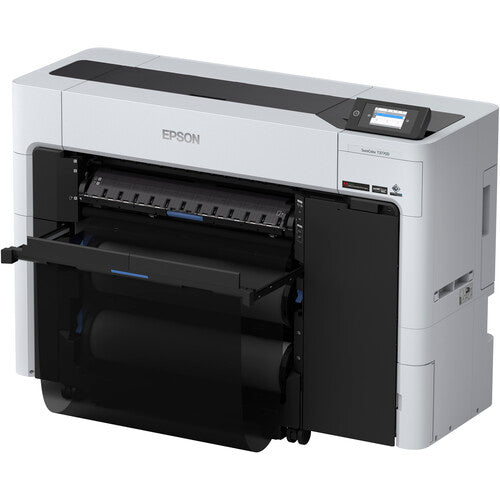

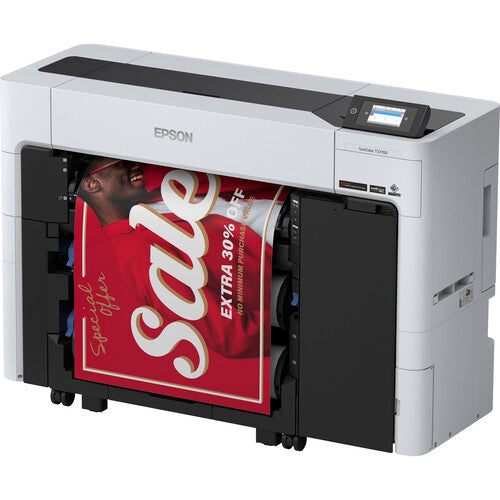

Epson SureColor T3770E Large Format CAD/Technical Printer (24", Single Roll)


Availability:

SKU:

Barcode:

Collections: Epson Large Format Printers, Epson Printers Promotion, Printers

Product type: Printer

Vendor: Epson

$2,795.00

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Customer Reviews

Based on 11 reviews Write a review
Description Tab title Delivery
Key Features
  • Max Resolution: 2400 x 1200 dpi
  • Max Printable Width: 24"
  • Print Speed: 23.4 x 33.1" from 0:16
  • PrecisionCore MicroTFP Printhead
  • 6 UltraChrome XD3 Inks Including Red
  • Roll Media and Cut Sheet Feeders
  • 4.3" Color LCD; Auto Head Maintenance
  • USB 3.0, Wireless, & Ethernet Connection



    Epson T3770 Overview

    Designed for printing technical drawings and CAD graphics, the single roll, 24" Epson SureColor T3770E Large Format Printer combines quality, sharpness, and speed in a compact form-factor to suit any production need. Equipped with a newly developed 2.6"-wide PrecisionCore MicroTFP printhead, the printer is able to reach resolutions of up to 2400 x 1200 dpi with 1,600 nozzles per color. Using a six-color, UltraChrome XD3 ink set that includes a dedicated Red Ink, images produced will feature smooth gradations, fine detail, crisp lines, and vibrant colors for graphics, signage, blueprints, documents. On top of this, the T3770E can work quickly when needed, including the ability to create a normal 23.4 x 33.1" (A1-sized) print in just 16 seconds.

    The printer supports rolls and cut sheets in a variety of media including glossy, technical, bond, matte, specialty media, and rigid posterboard up to 1.5 mm thick. For checking status and changing settings the front panel features a 4.3" color LCD alongside various navigation buttons. Additionally, the printer offers versatile connectivity options, including high-speed USB 3.0, Gigabit Ethernet, and Wi-Fi connectivity at 2.4 GHz and 5 GHz.

    Printing Technology
    • An Epson PrecisionCore microTFP 6-channel printhead works precisely to create images with a high level of detail, using resolutions of up to 2400 x 1200 dpi and Variable-Sized Droplet Technology to create ink drops as small as 3.5pL.
    • The 2.64"-wide printhead features 1600 nozzles per color and 6 channels for a total of 9600 nozzles.
    • Photo and Matte Black each have dedicated nozzles for instant switching between the two.
    • The T3770E can work quickly, featuring speeds of 0:16 to 1:05 to create an A1/D sized print.
    • Epson has implemented a 6-color UltraChrome XD3 pigment-based ink set in the T3770E that includes a dedicated red ink cartridge to produce crisp lines and vibrant colors.
    • The included cartridges hold 240mL of ink and the printer can accommodate cartridges up to 700mL for handling professional workloads.
    Media Handling
    • The T3770E prints on a variety of media ranging in width from 8-24", including glossy, technical, bond, matte, and specialty media, plus rigid posterboard up to 1.5mm thick.
    • BorderFree printing at 10", 13", 16", 17", 20", and 24" widths.
    • A built-in automatic rotary media cutter will help create clean cuts at the end of printing.
    • The printer can accommodate two media types or sizes, or use the second roll as a take-up reel for roll-to-roll production.
    General
    • The front control panel is equipped with a 4.3" color LCD as well as various navigation buttons and an LED status lamp.
    • Epson Professional Printer drivers support true 16-bit input and work with Windows and macOS/OS X computers.
    • An internal 320GB print server helps manage print data from multiple locations and features security, including IPsec and IEEE802.1x protocols.
    • USB 3.0, Wireless, and Ethernet connectivity are available for networking options.

      Epson T3770 Specs

      Functions Print
      Printer
      Printing Technology Inkjet
      Color Type Color
      Configuration 6 x Individual Cartridge
      Ink Type Pigment-Based (Cyan, Magenta, Matte Black, Photo Black, Red, Yellow)
      Ink Color 1 x Cyan
      1 x Magenta
      1 x Yellow
      1 x Photo Black
      1 x Matte Black
      1 x Red
      Compatible Cartridges Epson T50L, Epson T50S, Epson T51A
      Number of Nozzles 9600 Nozzles (Total)
      1600 Nozzles (Per Channel)
      Print Resolution Color: 2400 x 1200 dpi
      Borderless Printing Yes, Up to 24" / 61 cm
      Printer Language Standard: ESC/P2, HP-GL/2, HP-RTL
      Minimum Line Width 3.15 mil / 0.08 mm
      Line Accuracy ±0.1%
      Minimum Ink Droplet Size 3.5 pL
      Print Speed (By Size) 23.4 x 33.1" / 59.4 x 84.1 cm: 16 Seconds to 1 Minute 5 Seconds
      Printer Media Handling
      Media Handling Manual Feed, Roll Feed, Take-Up Reel
      Media Sizes Sheet/Roll Width: 8 to 24" / 20.3 to 61 cm
      Media Weight Roll Feed: 27 lb
      Media Thickness Sheet: 59.1 mil / 1.5 mm
      Roll: 2.76 to 3.15 mil / 0.07 to 0.08 mm
      Media Roll Diameter 2" / 5.1 cm (Core)
      3" / 7.6 cm (Core)
      6.69" / 17 cm (Outer)
      Margins Roll
      0.1" / 3 mm (Leading, Sides, Trailing)
      Sheet
      0.1" / 3 mm (Sides)
      0.1" / 3 mm (Leading)
      0.5" / 12.7 mm (Trailing)
      Connectivity
      Inputs/Outputs Printer: USB-A 3.0 / 3.1/3.2 Gen 1
      Wireless Wi-Fi 5 (802.11ac)
      Internal Memory Printer: 4 GB
      Mobile App Compatible Yes: Android & iOS
      App Name: iPrint
      *As of April, 2023: Check with manufacturer for the most up-to-date compatibility
      OS Compatibility macOS 11 or Later
      Windows 7 to 10
      Windows Vista
      Windows XP (32/64-Bit)
      Windows Server 2019
      Windows Server 2016
      Windows Server 2012 R2
      Windows Server 2012
      Windows Server 2008 R2
      Windows Server 2008
      Windows Server 2003 R2
      *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
      Environmental
      Operating Temperature 50 to 95°F / 10 to 35°C
      Operating Humidity 20 to 80% (Non-Condensing)
      Storage Temperature -4 to 104°F / -20 to 40°C
      Storage Humidity 5 to 85% (Non-Condensing)
      General
      Display Size 44.3"
      Display Type Touchscreen LCD
      Power Source AC Adapter (Included)
      Battery None
      AC Input Power 110 to 240 VAC, 50 / 60 Hz at 3.4 A
      Power Consumption Printer
      75 W (Maximum)
      32 W (Ready)
      2 W (Sleep)
      0.3 W (Standby)
      Max Acoustic Noise Printer
      49.6 dBA
      Certifications NRTL, CSA62368-1
      *as per Manufacturer

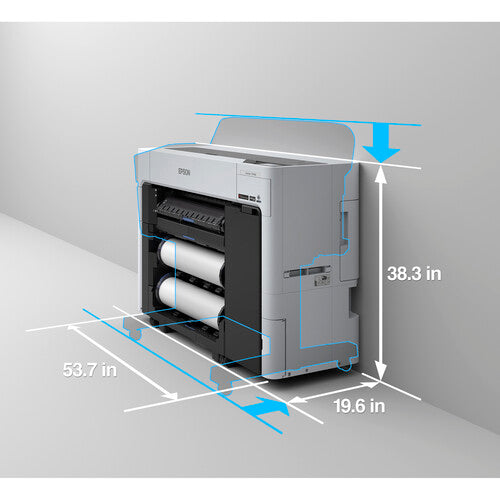

      Dimensions (W x H x D) Printer
      54 x 38 x 20" / 1.4 x 1 x 0.5 m (with Basket Closed, Storage)
      Printer
      54 x 38 x 33" / 1.4 x 1 x 0.8 m (with Basket Extended)
      Weight Printer
      254 lb / 115.2 kg
      Packaging Info
      Package Weight 264 lb
      Box Dimensions (LxWxH) 57 x 41 x 28"
