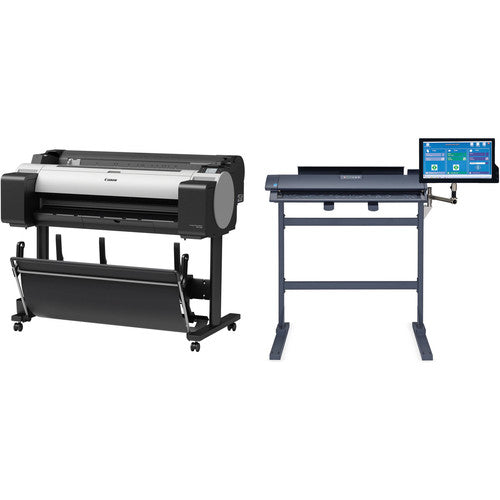

Canon TM-300 Large Format Inkjet Printer with M40 Scanner Kit


Availability:

SKU:

Barcode:

Collections: Printers

Product type: Printer

Vendor: Canon

$7,819.99

Add to the wishlist

Notify me

Enter your email and we will inform you when the goods appear in stock



Description Tab title Delivery
Key Features
  • Max Resolution: 2400 x 1200 dpi
  • Max Printable Width: 36"
  • Optical Scan Resolution: 1200 dpi
  • Maximum Scan Width: 40"

Canon ImagePROGRAF TM-300 36" Large-Format Inkjet Printer Specs

Printer
Printing Technology Inkjet
Ink Type Pigment Based (Black, Cyan, Magenta, Matte Black, Yellow)
Ink Color 1 x Black
1 x Matte Black
1 x Cyan
1 x Magenta
1 x Yellow
Compatible Ink Cartridges Canon PFI-120, Canon PFI-320
Number of Cartridges 5 Individual Cartridges
Number of Nozzles 15,360 Nozzles (Total)
5120 Nozzles (Matte Black)
2560 Nozzles (Per Other Color)
Print Resolution 2400 x 1200 dpi
Borderless Printing Yes
Minimum Ink Droplet Size 5 pL (Black, Cyan, Magenta, Matte Black, Yellow)
Printer Language Standard: HP-GL/2, HP-RTL, JPEG, PDF, SG Raster
Media Handling
Paper Handling Front Tray, Media Cutter, Output Tray, Roll Feed
Media Roll Diameter 5.9" / 15 cm (Outer)
Media Length Printer
8.0" to 59.0' / 0.2 m to 18.0 m (Roll)
Printer
8.0" to 63.0" / 20.3 cm to 160.0 cm (Sheet)
Media Width Printer
8.0 to 36.0" / 20.3 to 91.4 cm (Sheet)
Media Thickness Printer
3.9 to 31.5 mil / 0.1 to 0.8 mm (Sheet)
Connectivity
Interface Printer
USB 2.0, Wi-Fi, Ethernet
Direct Printing Apple AirPrint, USB Port, Wi-Fi Direct
Operating System Support Windows, iOS, macOS/OS X
Environmental
Operating Temperature 59 to 86°F / 15 to 30°C
Operating Humidity Printer
10 to 80%
General
Control Panel 3" / 7.6 cm Color Touchscreen LCD
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Printer
3.6 W (Standby)
Printer
69 W (Maximum)
Printer
0.3 W (Off)
Dimensions (W x H x D) 51.0 x 42.0 x 3.0" / 129.5 x 106.7 x 7.6 cm (with Basket Open and with Stand)
Weight Printer
134.0 lb / 60.8 kg (with Stand)
Packaging Info
Package Weight 208 lb
Box Dimensions (LxWxH) 53.5 x 43 x 27"

Canon M40 40" Large Format Scanner Specs

General
Optical Resolution 1200 dpi
Maximum Interpolated Resolution 9600 dpi
Maximum Scan Width 40" / 101.6 cm
Maximum Scan Length 315" / 800 cm
Maximum Scan Length (TIFF Files) 590" / 1499 cm
Color Depth 48-Bit (Internal)
Grayscale Depth 8-Bit (Internal)
Scan Modes Color, RGB, Grayscale, Monochrome
Media Handling Manual
Interface USB 2.0 & 3.0
Maximum Paper Thickness 82.7 mil / 2 mm
Image Sensor Contact Image Sensor (CIS)
Operating Voltage 100-250 VAC, 50-60 Hz
Power Consumption 53 Wh (Scanning)
5 Wh (Stand-By)
Dimensions 66 x 69.9 x 31.5" / 167.6 x 177.5 x 80 cm (Maximum)
Weight 120.4 lb / 54.6 kg (With Stand)
Packaging Info
Package Weight 156 lb
Box Dimensions (LxWxH) 55.5 x 20.7 x 14.8"



Canon TM-300 Overview

Bundled here together as a kit, create and make high-resolution prints and scans with the Canon TM-300 Large Format Inkjet Printer with M40 Scanner Kit from B&H. Able to print media up to 36" wide with a maximum resolution of 2400 x 1200 dpi, users can create high-quality documents and graphics with sharp text at large-format sizes. Able to accept documents up to 42" wide, the M40 scanner has a scan width of 40" and can scan media as long as 590" for TIFF files.

Canon imagePROGRAF TM-300 36" Large-Format Inkjet Printer

Create stunning prints with the imagePROGRAF TM-300 36" Large-Format Inkjet Printer from Canon. Able to handle media up to 36" wide and with a maximum resolution of 2400 x 1200 dpi, users can create high-quality documents and graphics with sharp text at large-format sizes. Featuring a high-precision, high-density printhead, with a total of 15,360 nozzles, the printer lays down 5 picoliter size droplets that produce sharp lines and fine details for exceptional image quality.

Utilizing Canon's 5-Color Lucia Inks, the TM-300 is ideal for technical documents, CAD drawings, GIS maps, posters, signs, and displays, and the UV and water-resistant inks add a level of protection that can withstand many outdoor conditions, making the printer well-suited for creating and taking building plans onto construction sites. This also makes the printer an excellent option for posters, signs, and displays.

For operating the printer, a stand and a 3" color touchscreen are featured, and a dedicated USB port permits printing directly from a thumb drive. The printer has wired and wireless networking via Ethernet, and Wi-Fi connectivity, and it has USB 2.0 for simple connection to a computer. Additionally, the unit's Sub-Ink Tank System allows most of the available ink to be used before replacement, which eliminates wasted ink and saves on operating costs.

6-Channel PF-06 Printhead

The high density 6-channel PF-06 printhead has a maximum resolution of 2400 x 1200 dpi and is designed for fast printing with minimal mist spray. With a total of 15,360 nozzles laying down 5 picoliter-size ink droplets the printer is able to produce clean lines and text which produce sharp detail and excellent image quality.

5-Color LUCIA Ink: UV & Water Resistant

Featuring an all-new 5-color LUCIA ink set, this UV and water resistant ink is formulated to produce fine lines and sharp text on both inkjet and non-inkjet paper. Combine these inks with water resistant media and you have printed documents that can withstand many outdoor conditions, especially outdoor job sites such as construction sites. Additionally, this makes the printer well-suited for creating outdoor poster displays and store signs.

Sub-Ink Tank System

The Sub-Ink Tank System allows virtually all of the available ink in a tank to be used before having to replace it, helping to eliminate wasted ink and cutting down on consumable costs. The empty tanks can also be replaced without stopping the printer, which is useful during long print jobs.

3" Color Touchscreen

Featuring a 3" color touchscreen operation panel, the TM-300 makes it easy to view printer information as well as perform simple operations.

Wi-Fi Compatible

With Wi-Fi connectivity you can transfer technical drawing files and speed up workflow. No Wi-Fi router is needed providing greater freedom during installation.

Quiet Operation

The TM-300 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.

Direct USB Thumb Drive Printing

An accessible USB port permits the use of a thumb drive for direct printing of files without the use of a computer.

Bundled Software and Tools

The TM-300 Printer comes with a variety of software and management tools:
TM Unified Printer Driver
Direct Print and Share
Accounting Manager
PosterArtist Lite
AutoCAD Optimized Image Driver
Device Management Console
Media Configuration Tool
Apple AirPrint
Canon Print Service
UPC: 013803306361

Canon M40 40" Large Format Scanner

Add professional-level scanning to your 5-color imagePROGRAF printer with the M40 Scanner from Canon. Featuring a 19.5" flat-panel multi-touch screen with a swing-arm for easy monitor placement, the M40 is designed for architects, engineers, and other professionals who need to scan, edit, save, share, and print large-format documents easily and efficiently. Capable of scanning images up to 40" wide at resolutions up to 1200 dpi, color scan speeds are an impressive 3" per second, and for monochrome scanning the unit scans up to 13" per second.

Included with the scanner is SmartWorks MFP Scan-To-Print/File/Edit/Share software. This software offers an intuitive interface for easy navigation and the ability to add custom presets with one-touch retrieval for often-used settings, and image enhancements include white point adjust, black point adjust, sharpen, mirror, invert, and autocrop. Additionally, this software can be integrated with Canon's Direct Print & Share Cloud Portal software.
