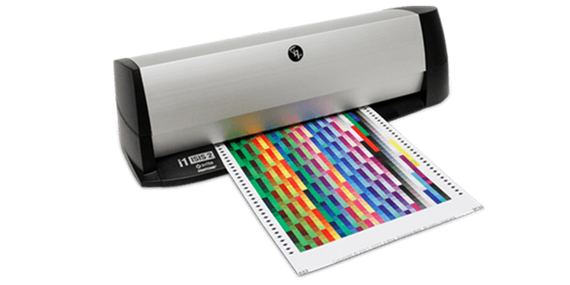

X-Rite i1iSis 2 Automated Chart Reader
X-Rite i1iSis 2 Automated Chart Reader
The i1iSis 2 A4/Letter automated chart reader is the ideal instrument to speed up and automate printer profile creation, now supporting M1 measurement standards.
Automate Your Profiling and Calibrating
In high production environments such as photo processing, large format, fine art and high-speed digital printing, frequent measurement of color test charts to keep color management profiles up to date is a must. With the i1iSis 2, this task no longer need be labor-intensive. Simply print the A4 test chart, read it into the i1iSis 2 in to process 1,500 patches in just 8 minutes, and check results. It’s that easy.
The i1iSis 2 is compliant with the latest ISO standards for M-Series measurement illumination conditions, including:
- M0 (No Filter) where neither substrate nor imaging colorants fluoresces
- M1 for proper measurement of substrates with optical brightening agents (OBA’s)
- M2, when there is a desire to eliminate the fluorescing effect from the measurement data.
Benefits:
- Captures full spectral data of an A4 test chart faster for less time spent on press profiling.
- Assures compliance with new ISO standards for M-Series measurement illumination conditions. Switchable illumination captures M0, M1 and M2 in a single chart measurement cycle.
- Comes with a built-in vision system with high tolerance for how charts are aligned as they are fed into the system, automatically correcting for misalignment.
- Accommodates a variety of inks and substrates in any viewing condition using Optical Brightening Agents (OBAs).
- Complies with GRAcoL 2013, SWOP 2013, and ISO 12647-2, FOGRA 51, FOGRA 52 and the XRGA standard.
The i1iSis 2 improves the speed and accuracy of profiling and calibration and helps operators address color drift before it is visible to the human eye. You can even average more than one target and quickly analyze a high volume of charts. Need a larger chart size? Learn about the i1iSis 2 XL A3 chart reader. With the i1iSis 2, spend less time profiling and more time ensuring happy customers!
SPECIFICATIONS:
Short Term Repeatability - White:
0.1 DE*94 (D50, 2°)Inter-Instrument Agreement:
Average 0.4 DE*94 (deviation from X-Rite manufacturing standard at a temperature of 23°C on 12 BCRA tiles (D50, 2°))Measurement Conditions:
M0, M1 & M2Minimal Media Thickness:
Typical 0.16mm, Range: 0.08 to 0.45mmPhotometric Range:
10 nm; Sampling interval 3.5 nm (100 bands)Spectral Analyzer:
i1® technology (holographic diffraction grating with diode array)Spectral Range:
380 - 730 nmSpectral Reporting:
10 nmAperture:
Effective measurement aperture during scanning is depending on the patch sizeUnit Color:
Silver/BlackDimensions (length, width, height):
Width 42 cm, depth 16 cm, height 12 cm (16.5 x 6.3 x 4.7 inches)Weight:
3.2 kg (112.9 oz)Communication Interface:
USBExperience Level:
Intermediate to AdvancedSoftware Development Kit:
Available for OEM customersSheet Size:
- A4+
- Width: 6 to 23 cm (2.4 to 9 in.)
- Length: 17 cm to 66 cm (6.7 to 26 in.)
Calibration:
Automatic on Internal Calibration ReferenceOptical Brigtener Compensation (OBC):
Optical Brightener Compensation (OBC) with i1Profiler softwareWarranty:
Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.What's Included?:
i1iSis 2 spectrophotometer; main power cable, USB cableConnectivity:
Powered USB portYour may also be interested in following product
