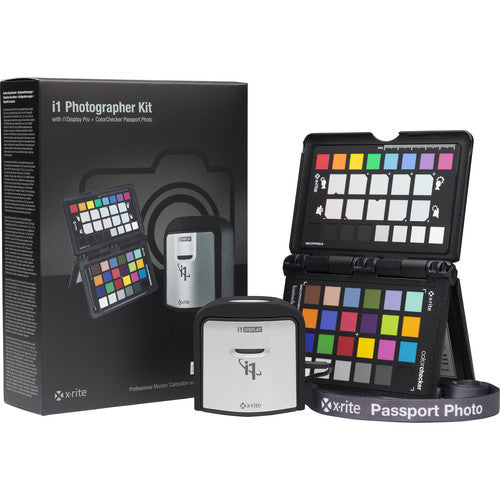

X-Rite i1 Photographer Kit

Enhanced features include:

• Technologically advanced and ergonomic multi-functional measurement device
• Next generation i1Profiler software for calibrating and profiling all modern display and projector technologies including LED & Wide Gamut LCDs
• Infinite control of white point, luminance, contrast ratio, gamma and more
• Multiple monitor and workgroup profiling
• Intelligent Iterative Profiling an adaptive technology that measures and analyzes the color capabilities of each unique display for increased accuracy of profile
• Profile optimization create unique patch sets for optimal results
• Ambient Light Smart Control - measurement, compensation and ongoing monitoring of ambient lighting conditions
• Flare Correct - measurement and compensation of display surface glare
• Automatic Display Control (ADC) adjusts your displays hardware to speed up process and eliminate manual adjustments
• Display quality check and trending over time
• PANTONE spot color optimization

Perfect Color And More Control Than You Ever Thought Possible

Color Perfectionists shouldn't guess when it comes to on-screen color accuracy. The color you see on your monitor or projector is the color you should expect from your printer. Once you take the guesswork and frustration out of calibrating and profiling your displays, you'll save time and money while gaining full creative control over your images.

New State of the Art Instrument for Unrivaled Color Measurement Accuracy

i1Display incorporates new technologically advanced filter and optical systems, amazingly fast measurement speed, and unrivaled color accuracy on all modern display technologies including LED & Wide Gamut LCDs. It's also spectrally calibrated, which makes it field upgradeable to support future display technologies.

The ultra-modern ergonomic design incorporates three functions ambient light measurement, monitor profiling, and projector profiling into a very sleek, compact and fully integrated device with no parts to misplace.

• Intuitive all-in-one design is very easy to use
• Blazing fast speed measures 5X faster than previous devices
• Compact and self-contained for maximum portability
• Custom designed RGB filter set provides accurate color measurements
• New optical design allows for high repeatability on the same display and across different display types for more consistent color matching
• Rotatable diffuser arm can be used as a stand for table top projector profiling, ambient light measurement, and as a cover for instrument optics
• Conveniently integrated tripod mount for projector profiling in larger venues

i1Profiler Software with Basic and Advanced Mode Flexibility

The next generation of our top of the line color management software offers the ultimate in flexibility and control. Basic mode offers a wizard driven interface with predefined options for the quickest path to professional on-screen color. Advanced mode offers user-defined options for more sophisticated profiling workflows to deliver the highest quality color results on monitors and projectors, as well as display testing and quality assurance tools. No matter which mode you use, you'll be able to attain professional color results for a more perfect match between your display and printer.

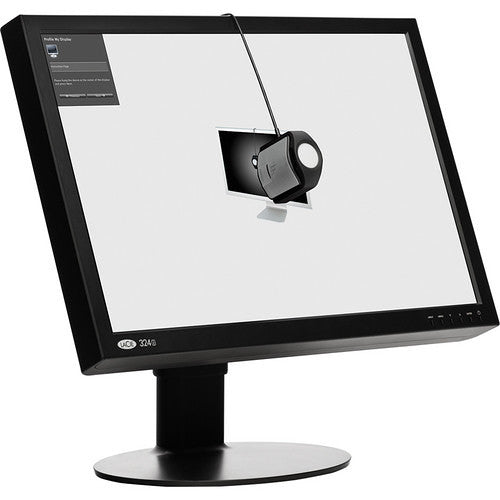

Display Profiling

• Infinite control of white point, luminance, contrast ratio, gamma and more
• Ambient Light Measurement automatically determine the optimum display luminance for comparing prints to your display, based on a measurement of the lighting conditions where prints will be viewed
• Ambient Light Smart Control the intensity or amount of ambient light surrounding your workspace affects the way you perceive colors on your display. i1Display Pro can compensate for this effect and provide the option to automatically adjust your profile or simply notify you as ambient light conditions change
• Flare Correct measures and adjusts your display profile for reduced contrast ratios caused by flare light (or glare) falling on surface of display. By accurately measuring your effective display contrast ratio, you'll have an even more accurate display profile
• Intelligent Iterative Profiling, an adaptive technology that produces optimized results for maximum color accuracy on each unique display every time you profile
• 3 patch set sizes small, medium, or large allow you to increase your profile accuracy by measuring a higher number of patches
• Profile optimization create custom patch sets to optimize your profiles by choosing a combination of patch set size, extracted colors from specific images and/or PANTONE spot colors selected from the included PANTONE Color Manager software
• Automatic Display Control (ADC) technology automates the adjustment of your displays hardware (brightness/backlight, contrast, and color temperature) to speed up the profiling process and eliminate manual adjustments
• Workflow Flexibility advanced user-defined controls support more sophisticated workflows. For example, White Point can be set from predefined values, custom xy values, based on measurement of ambient light, based on measurement of another display, or from previously measured values, etc.
• Multiple Display and Workgroup Matching re-use profile settings on multiple displays connected to the same computer or to multiple computers within a workgroup
• Before and after images show instant results using one of our images or your own
• Profile reminder notifies you when it is time to re-profile your display
• Easy to follow on-screen help guides and videos - no extra manuals needed

Projector Profiling

• Quickly and accurately create projector profiles to show your images on the big screen with color confidence
• Intelligent adaptive profiling technology for maximum color accuracy from each unique projector
• Compact device for maximum portability on location
• Diffuser arm adjusts to a stand for table top applications
• Conveniently integrated tripod mount for larger venues

Display QA Workflow

• Visual validation using pre-defined and user defined images
• Measurement based validation using industry standard targets and reference data sets (SWOP, Gracol, Fogra, etc.)
• Measurement based validation using PANTONE color and libraries
• Measurement based validation using colors extracted from user defined images
• User defined PASS/FAIL deltaE tolerance for average and maximum values
• Color accuracy trending over time (per connected display)

Display Uniformity Test

• Measure white point and luminance uniformity over 9 locations on display
• User defined PASS/FAIL tolerance

Software Specifications Macintosh Intel CPU Mac OS X 10.5.8 or 10.6 [with latest upgrades installed] 1GB of available RAM 2GB of available hard disk space Monitor resolution of 1024 x 600 pixels or higher Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded Powered USB port DVD drive or high speed internet connection to download the software Internet connection for software updates User must have administrator rights to install, uninstall the application Windows Intel Pentium 4 or AMD Athlon XP or better CPU Windows XP 32 bit or 64-bit, Windows Vista 32 or 64-bit, Windows 7 32 or 64-bit Latest service packs installed 1GB of available RAM 2GB of available hard disk space Monitor resolution of 1024 x 600 pixels or higher Dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded Powered USB port Network adaptor installed and driver loaded DVD drive or high speed internet connection to download the software Internet connection required for software updates User must have administrator rights to install, uninstall the application REGISTRATION Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use. LANGUAGE VERSIONS This product is available in the following languages: Chinese (simplified & traditional) English French German Italian Japanese Portuguese Spanish i1DISPLAY PRO INCLUDES i1Display colorimeter, i1Profiler profiling software for displays and projectors, PANTONE Color Manager software and Quick Start Guide. i1Display Pro includes an end user license agreement (EULA) allowing a single user the ability to install and run unlimited installations of i1Profiler software on any number of computers that he/she owns. A PDF of the single user, unlimited seat license policy can be downloaded via the Support Tab link.
